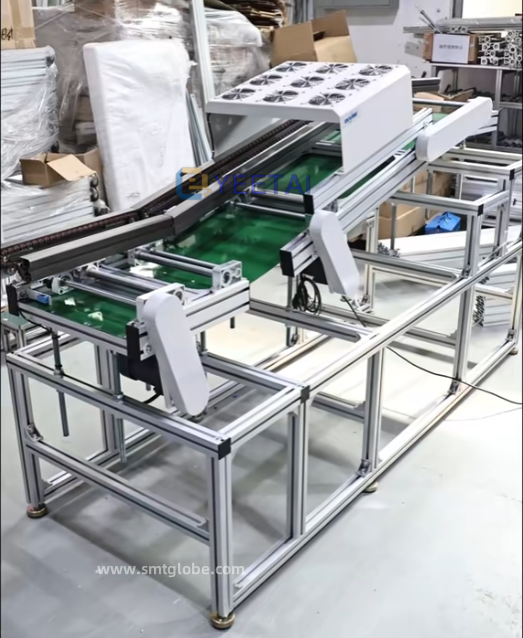

The Wave Solder Outlet Conveyor efficiently transfers PCBs/pallets from the wave soldering machine’s outfeed. With adjustable inclined angles and variable speed control, it ensures synchronized and seamless operations within the production line.The Wave solder outfeed conveyor, driven by transmission rollers and supported by a frame, is essential for transferring PCBs/pallets to the soldering outlet. It boasts high throughput, fast speed, and smooth operation, enabling efficient multi-product line diversion.

Features:

• Firstly, the conveyor Allows for adjustable transmission speed, height, and track angle.
• Secondary,option to install cooling fans for protection of components like (PCBs) or assemblies.
• Utilizes special belts and tracks for smooth transmission, ensuring stable and reliable operation.
• Besides, the conveyor Ensures structure stability for consistent performance.
• Additionally, the option to install cooling fans provides added protection for sensitive components such as polychlorinated biphenyls (PCBs) or assemblies.
• The advanced conveyor provides parallel and smooth width adjustment through a lead screw mechanism.
• Compatible with SMEMA standards for seamless integration into production lines.
• Optional PLC control for enhanced automation.
• Optional cooling fans for additional component protection.
• Its robust structure stability further enhances performance, while the adjustable inclined angle and variable speed control enable seamless synchronization with the wave soldering machine. Moreover, the parallel and smooth width adjustment mechanism, operated by a lead screw, facilitates precise customization for optimal production output.

Technical specifications

Transport height: infeed:1200mm ±20mm.

outlet:750 ±20mm

Transfer direction: L to R or specify R to L

Belt type: Green anti-static PVC belt or specify.

Speed:0.5-20m/min adjustable

Power supply: AC 110 Volts Or 220 Volts; Single Phase

Power consumption:100VA max. or specify.

Load bearing:1.5kg/PCB.

Model	Dimension (L*W*H.MM)	PCB size (MM)	Weight (KG)	PCB Thickness
EWF-445	1200*600*1100	50*50-445*330	35KG	0.6~4 mm
EWF-530	1200*730*1100	50*50-530*460	45KG	0.6~4 mm

Structure stability.

Adjustable inclined angle

Variable speed control to synchronize with wave soldering machine.

Parallel and Smooth width adjustment. (lead screw)

SMEMA compatible

PLC controlled (optional)

Cooling fans (optional)

For daily maintenance

• Check and adjust the belt tension appropriately.
• Inspect the lubricating oil in the motor gearbox to ensure proper functioning.
• Clean the belt and ensure its integrity; promptly replace any damaged belts.
• Verify all fasteners are secure and tightened.

Regular upkeep of the Wave solder outlet conveyor ensures optimal performance and longevity.
