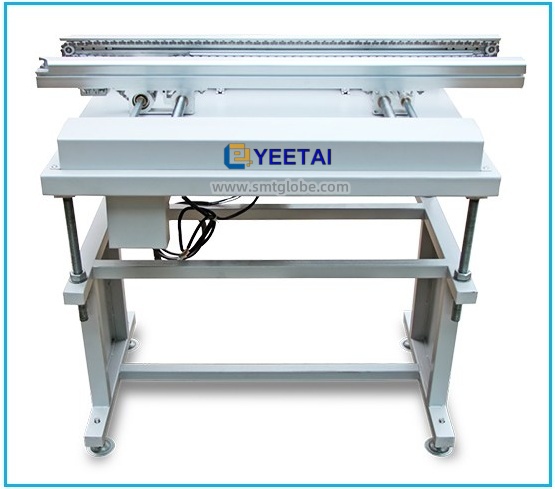

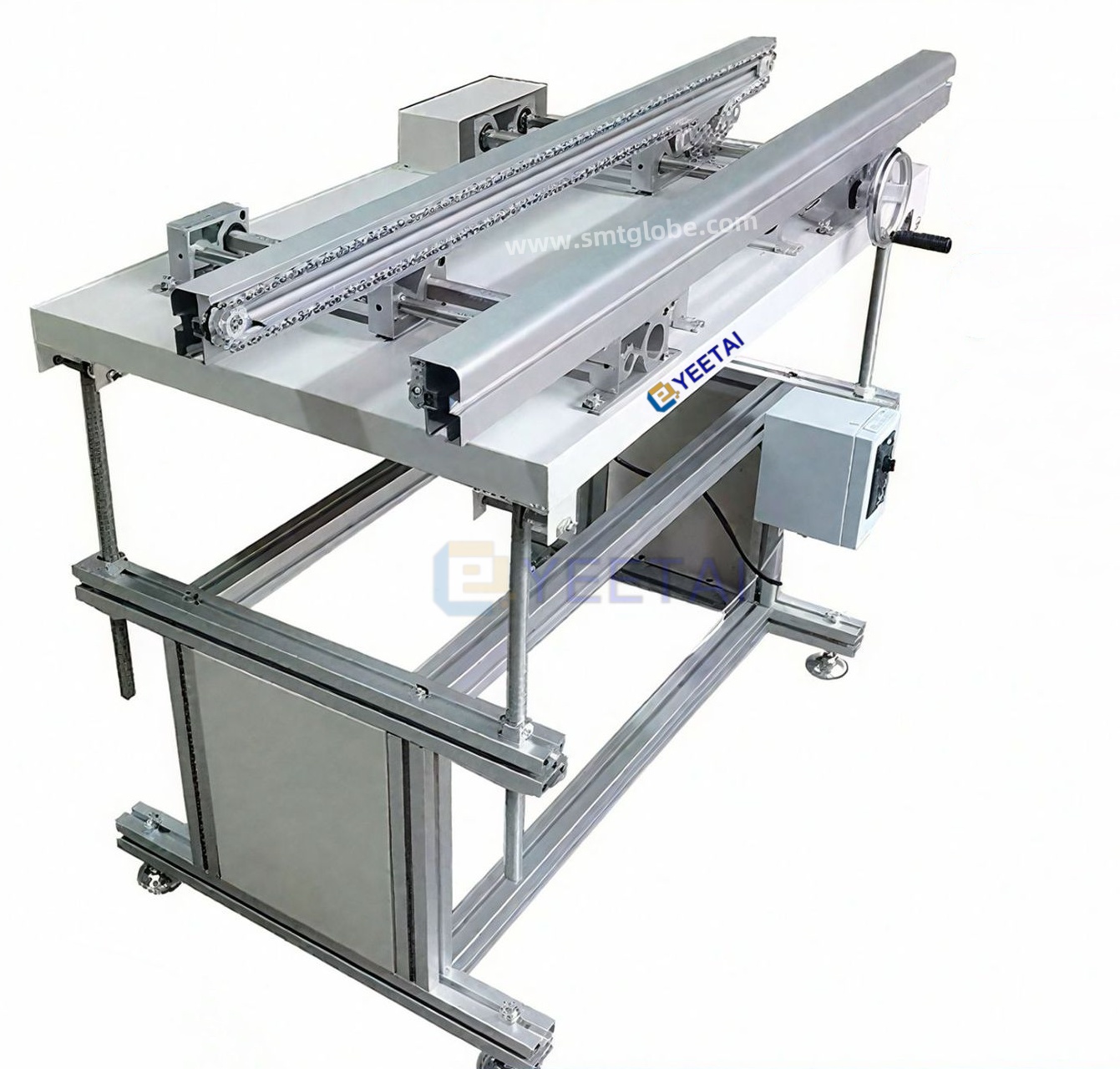

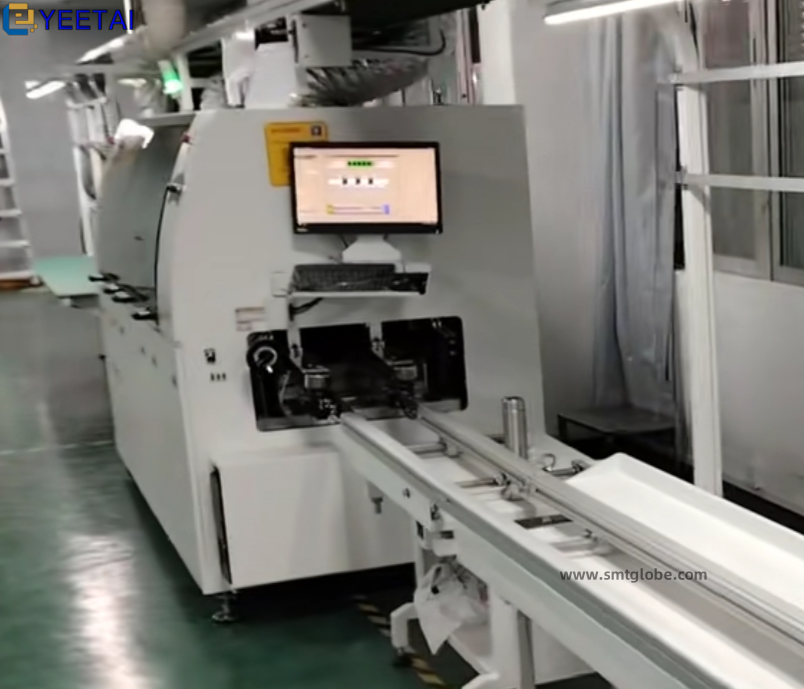

The Wave solder infeed conveyor serves the purpose of smoothly transferring PCBs/pallets into the wave soldering machine. This conveyor system plays a crucial role in the efficient workflow of the wave soldering process by facilitating the seamless entry of PCBs or pallets into the soldering machine. Its function is to ensure a continuous and reliable supply of PCBs or pallets for the soldering process, contributing to the overall productivity and quality of the manufacturing operation.

Features:

1. The Wave solder infeed conveyor is designed to feed printed circuit boards or pallets into the wave soldering machine at an angle of 6-7°.
2. The width and angle of the wave solder infeed conveyor can be manually adjusted.
3. Equipped with special belts and tracks for smooth transmission, ensuring stable and reliable operation.

• Ensures stability in structure for reliable operation.
• Allows for adjustable incline angles to meet varying production needs.
• Utilizes aluminum conveying guide rails for durability and precision.

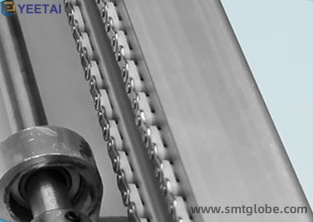

• Features pin chain with options for 3mm or 5mm pins for versatile PCB handling.
• Equipped with a conveying motor that includes a speed controller for efficient operation.

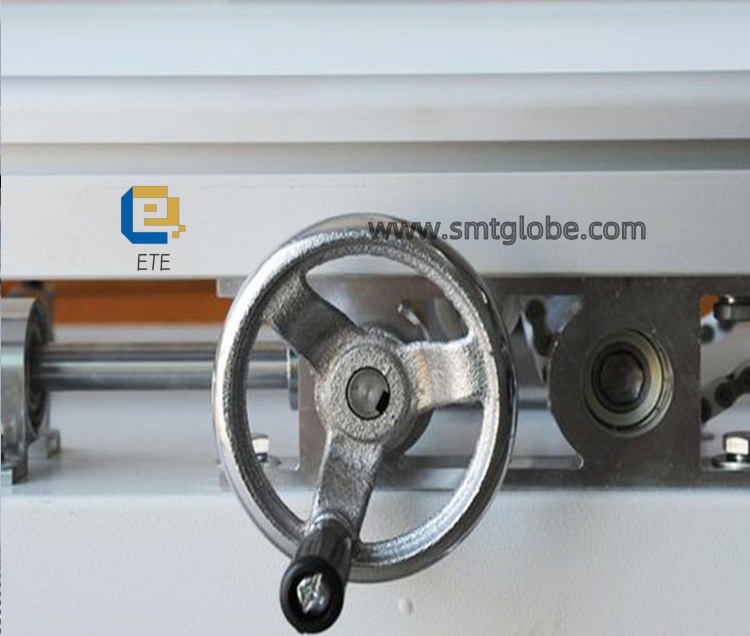

• Offers parallel and smooth width adjustment through a lead screw mechanism.
• Provides variable speed control to synchronize seamlessly with the wave soldering machine.
• Compatible with SMEMA standards for easy integration into production lines.

Configuration

1. Controlled by Taiwan VTV variable speed motor.
2. Infeed table length variable.
3. High-quality 35B imported nylon chain transmission.
4. Special aluminum profile guide rails.
5. Special gears and trapezoidal screw synchronous width adjustment structure.
6. Surface treatment: electrostatic spray computer white.
7. PCB width range variable.
8. Fixed front guide rail, from left to right.

Specification
