SMT Squeegee Cleaning Machine ET-22Q0

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

SMT Squeegee Cleaning Machine ET-22Q0

SMT Squeegee Cleaning Machine automatically removes solder paste residues on the Squeegee of DEK screen printer.Ultrasound vibration + spraying and spraying two cleaning methods, cleaning more thoroughly.Efficiently cleaning SMT solder paste printing squeegees.

  • Compatible with all automatic solder paste printers squeegee.
  • Thorough and comprehensive cleaning process.
  • With a color touchscreen and PLC control.
  • Dual-Pump Cleaning System.

Contact info@smtglobe.com

Share

SMT Squeegee Cleaning Machine: Efficient Cleaning for SMT Solder Paste Printing

Our SMT Squeegee Cleaning Machine is a state-of-the-art device designed for the automatic cleaning of SMT (Surface Mount Technology) solder paste printing squeegee. This innovative machine streamlines the cleaning process by combining a water-based cleaning solution, DI water rinsing, and hot air drying all in one compact unit. With its advanced cleaning technology, the machine ensures optimal performance and longevity for your squeegee.

SMT Squeegee Cleaning Machine
SMT Squeegee Cleaning Machine

Specification

Machine modelET-22Q0
Applicable squeegee sizeL600mm
Number of squeegees to be cleaned at one time6 handles
Liquid tank capacity80Lx2
Cleaning time5~10min
Rinsing time1~2min
Drying time5~20min
Cleaning liquidWater-based stencil cleaning fluid
Rinsing liquidDI water
Drying methodHigh pressure hot air drying
Washing/rinsing filter100um filter + 1um filter core
Ultrasonic power1.2KW
Washing and rinsing pump power1.1KW+1.1KW
Power RequirementAC380V 3P,50/60HZ,28KW
Air Requirement0.5~0.7Mpa,200~400L/Min
Machine sizeL1400 x W1300 x H1300(mm)
Machine weight500KG

Key Features of SMT Squeegee Cleaning Machine

1. Comprehensive Cleaning Process

The SMT Squeegee Cleaning Machine effectively cleans squeegees by using a combination of ultrasonic vibrations, kinetic energy from spray jets, and the chemical decomposition properties of water-based cleaning solutions. During the cleaning cycle, the squeegee is securely held in place and rotates, allowing for a thorough clean without damaging the equipment.

2. Durable Construction

Crafted from SUS304 stainless steel, this machine is corrosion-resistant and built to withstand exposure to acids and alkalis, ensuring long-lasting performance and reliability in demanding production environments.

3. Versatile Compatibility

Designed to work seamlessly with all automatic solder paste printers available on the market, the SMT Squeegee Cleaning Machine is a versatile solution that can cater to various production needs, making it an ideal choice for manufacturers.

4. High Capacity

The rotating cleaning system can accommodate up to 6 squeegees at once, with a maximum cleaning length of 900mm. This enables efficient cleaning and minimizes downtime between production runs.

5. User-Friendly Design

Equipped with an intuitive one-touch system, the machine automates the entire cleaning process, including rinsing and drying, based on preset programs. The cleaning chamber also features a clear visual window, allowing operators to monitor the cleaning progress easily.

6. Advanced Control System

With a color touchscreen and PLC (Programmable Logic Controller), users can easily operate the machine, select specific cleaning programs, and adjust cleaning parameters based on the type of squeegee being cleaned.

7. Dual-Pump Cleaning System

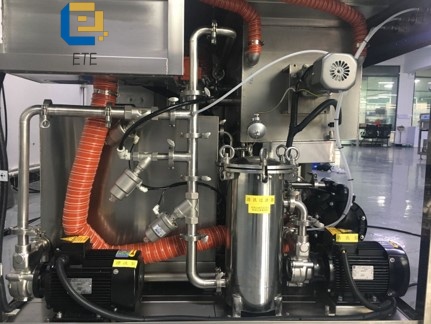

It utilizes a dual-pump, dual-system for cleaning and rinsing, each equipped with independent liquid tanks and pipelines. This design enhances cleaning efficiency while preventing solder balls from returning to the surface of the squeegees.

8. Eco-Friendly Operation

The machine incorporates real-time filtration systems for both cleaning and rinsing processes, recycling cleaning fluids and rinsing water to minimize waste discharge and align with environmental protection standards.

9. Enhanced Efficiency

A diaphragm pump facilitates quick filling and draining of liquids, further improving operational efficiency and reducing cleanup time after each cycle.


Conclusion

Our SMT Squeegee Cleaning Machine is an advanced, reliable solution for maintaining optimal performance in SMT stencil cleaning processes. With its combination of innovative cleaning technology, durable construction, and user-friendly design, this machine is essential for manufacturers looking to enhance production efficiency and ensure the longevity of their cleaning processes.


For more information or to place an order, contact us today!
