SMT Reject Conveyor: Efficient Handling of Faulty PCBs

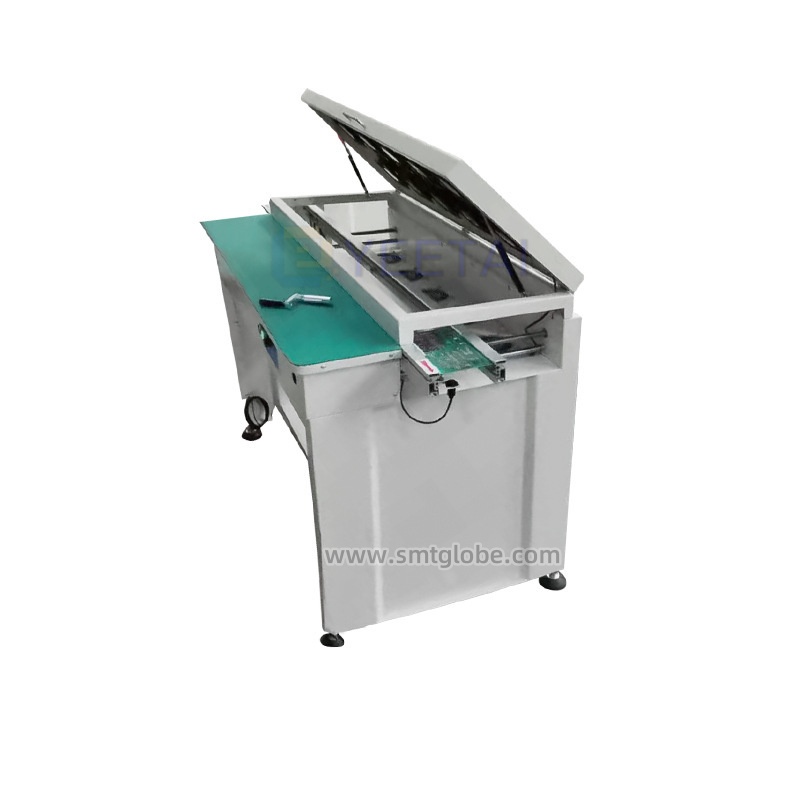

Our SMT reject conveyor efficiently manages faulty PCBs (Printed Circuit Boards) during the assembly process. It is smart and intelligent. It allows operators to easily lift and inspect defective boards without interrupting the flow of other PCBs. This conveyor works seamlessly with the production line. Thus, it ensures a smooth and continuous workflow. By quickly identifying and addressing defects, the SMT reject conveyor helps maintain the overall quality of the PCBs being produced.
Key Features of the SMT Reject Conveyor:
- Multiple Operating Modes: The conveyor offers three modes—’reject’, ‘inspect’, and ‘pass through’—giving you flexibility in handling different types of boards.
- Sturdy Design: Built with a robust design, the conveyor provides stability and enhances both performance and longevity.
- Ergonomic Comfort: It comes with an ergonomically designed armrest for the comfort of operators during use.
- Customizable Width Adjustment: The conveyor allows for smooth and parallel width adjustments. Easy to tailor it for various PCB sizes.
- Length Options: Different lengths are available upon request to meet specific production needs.
- Variable Speed Control: Operators can precisely adjust the speed to match production requirements.
- SMEMA Compatibility: The conveyor integrates seamlessly with other equipment in the assembly line. High compatibility.
- Single or Double Lane Options: We can make the conveyor with 1 lane or 2 lanes. All depends on your production line.
Technical specifications
Transport height:900mm ±20mm or specify.
Transfer direction: L to R or specify R to L
Belt type: ESD belt (round belt)
Speed:0.5-20m/min adjustable
Power supply: AC 110 Volts Or 220 Volts; Single Phase
Power consumption:100VA max. or specify.
Buffering capacity: 5 PCB or specify.
| Model | Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Remark |
| EHC-355 | 500*665*900 | 50*50-445*350 | 50KG | no Lighting |
| EHC-467 | 500*795*900 | 50*50-460*460 | 70KG | no Lighting |
| EHC-358 | 1000*665*900 | 50*50-445*350 | 80KG | no Lighting |
| EHC-469 | 1000*795*900 | 50*50-460*460 | 90KG | no Lighting |
Conclusion
The SMT reject conveyor is an effective solution for managing faulty boards in PCB assembly. Its flexible modes, robust design, and ergonomic features make it a valuable addition to any production line, ensuring high-quality output while maintaining a smooth workflow.
If you need other PCB board handling equipment, we can also help. Find them as below.
