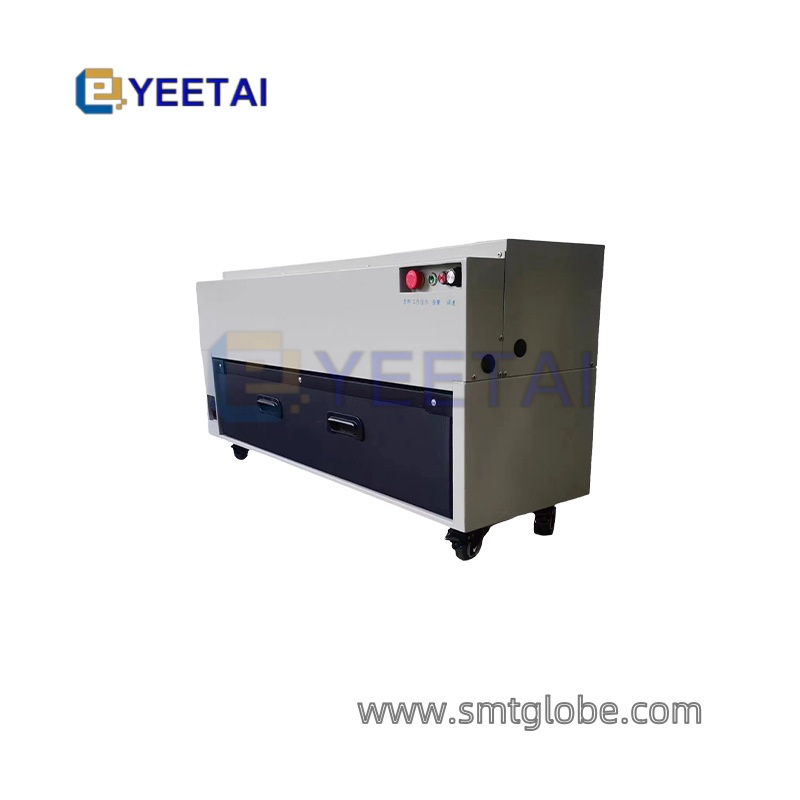

Our SMT Reel Scrap Cutting Machine is an innovative cutting and recycling device. It specifically works for the efficient recycling of reel tapes used in pick-and-place machines. Unlike traditional methods that rely on manual cutting with scissors and disposal in garbage bins. Our machine automates this process, significantly enhancing operational efficiency and workplace safety.
Key Features of SMT Reel Scrap Cutting Machine
- Versatile Cutting Capability
The SMT Reel Scrap Cutter can handle a wide variety of SMT reel tapes. From 0.05mm thin films to 1.5mm thick tapes. - Space-Efficient Design

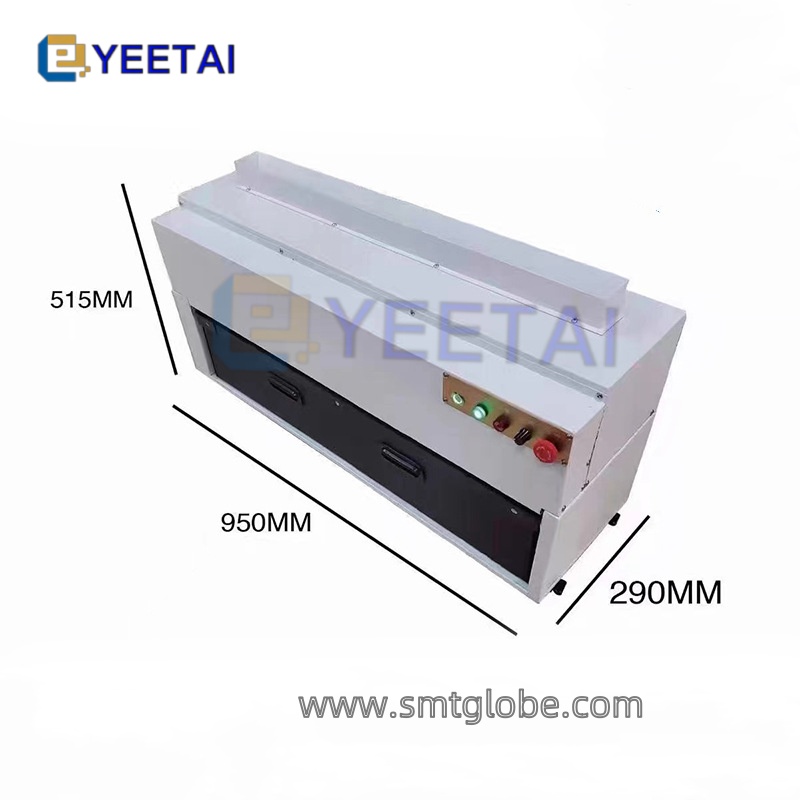

Our machine features a compact, aesthetically pleasing design that minimizes footprint, making it easy to use and store. We can customize dimensions to fit the unique specifications of client pick-and-place machine recovery areas. - Durable and Efficient Blades
Crafted from imported SKD-11 steel. Our blades last with a one-year warranty and no need for sharpening during this period. The blades feature a reversible design, allowing for extended use. - Advanced Rolling Cutting Mechanism
The unique rolling cutting mechanism employs eight spring tensions to ensure precise cutting and reduces wear on blades. Addressing common issues with conventional devices. - User-Friendly Microcomputer Control
The machine has microcomputer intelligent control. Thus it allows operators to easily set cutting time and length with a single button for start/stop functions. - Safety Features
The waste collection area includes safety sensors that stop operation when the waste tray is removed, ensuring user safety. Limit switches are also integrated to prevent overtravel of the cutting stroke, reducing the risk of motor damage. - Smooth Operation
Our SMT Reel Scrap Cutter offers smooth and efficient operation, while the four-brake casters enable easy mobility within your workspace.
Specification
| Technical parameters | |
| Function | This equipment is used for SMT pick and place machine stations. To cut and recycle SMT Reel Tape Scrap |
| Cutting Width | >800 mm |
| Cutting Length | 10-110 mm |
| Power | 15 W |
| Powe Supply | 100-230V, 50Hz |
| Weight | 35 kg |
| Weight dimension | Based on SMT pick and place machine |
| Collecting area | 770x60mm |
| Cutting area | 845x25mm |
| Collector box quantitative | 42L |
| Cutting Speed | 0-200mm/s |
Advantages of Using SMT Reel Scrap Cutter
- Extended Warranty: Enjoy a one-year warranty on the machine and a two-year warranty on the motor. Showcasing our commitment to quality.
- Custom Solutions: We tailor our products according to your specifications and dimensions. Ensuring that you receive the optimal solution for your needs.
- Cost-Effective Maintenance: Our blades can be sharpened twice for free. Providing you with a cost-effective solution that enhances your operational efficiency.
- Support for 5S Management: The SMT Reel Scrap Cutter enhances workplace organization, contributing positively to your company’s 5S management practices.
Conclusion
Investing in our SMT Reel Scrap Cutting Machine not only streamlines your waste tape cutting processes but also contributes to a safer and more organized work environment. Enhance your operational efficiency and uphold your company’s commitment to quality and safety with our advanced cutting machine.
For more information about our SMT tape cutting solutions or to request a quote, please contact us today!
