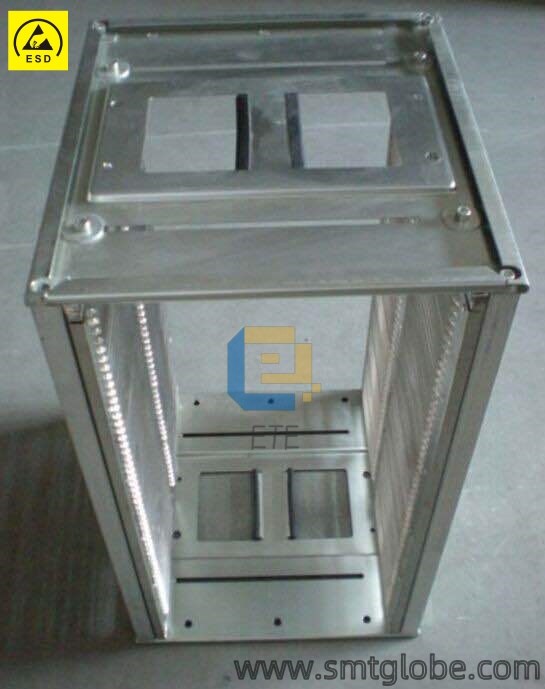

SMT PCB Magazine Rack E25AM

SMT PCB Magazine Rack that works seamlessly with SMT loaders and unloaders, facilitating smooth PCB handling and storage processes.

Lightweight, easy to carry.

Large storage capacity.

ESD safe.

Width adjustment.

High temperature resistant.

Contact: info@smtglobe.com

Share

SMT PCB Magazine Rack is designed for seamless PCB storage and retrieval, providing efficient workflow in SMT environments. Smooth moving. High temperature resistance. If you want to store your PCB or PCBA better, you may contact us to get a suitable magazine rack. To enhance efficiency and streamline your SMT production.


Structure of the SMT PCB Magazine Rack

Top and Bottom Panels

top and bottom plate

The magazine rack features upper and lower panels made from high-quality steel. These panels are stamped to form a strong shape. They include plastic teeth that are anti-static. Thus, these designs ensure the precise size of the rack and help prevent boards from getting stuck.

Fixed Side Panels

The fixed side panels attach to the top and bottom panels with screws. They are made from five aluminum plates that connect to a back beam. Thus, they are stable and look good. The edges are smooth, allowing for easy sliding of the boards.

Aluminum SMT Magazine Rack Fixed Panels

Adjustable Side Panels

the Adjustable Panels

The adjustable side panels can slide in a groove using pressure clips. This feature allows users to set the distance between panels, adapting to different PCB sizes. Therefore, it is versatile and can accommodate various storage needs.


How the SMT PCB Magazine Rack Works

Easily Adjust Panel Width
When you want to change the width of the panels, the teeth on the upper and lower panels work together. They engage the gears on the adjustable panels. This movement drives a shaft, allowing four clips to slide in their grooves. Thus, the adjustable panels stay parallel to the fixed panels and avoid getting stuck. Once in position, the clips lock the adjustable panels securely.


Specification

Model: E25AM

Surface resistance: 104~106 Ω

External dimensions: 355 * 320 * 563mm

PCB board specification: 350 * (50-250) mm

Slot depth: 3.5mm

Slot width: 5mm

Spacing; 10mm

Can store PCB quantity: 50 pieces

Material of upper and lower bottom plates: metal plate

Adjustment method: screw adjustment

High temperature resistance, can be used in an oven

Other sizes 400 * 460 * 570 460 * 530 * 570 535 * 530 * 570355 * 320 * 363mm


Features of the Aluminum SMT Magazine Rack

Lightweight Aluminum Alloy Pillars
The magazine rack uses aluminum alloy pillars. They are made using an extrusion process with a wall thickness of 1.5mm. This design provides strength while keeping the product lightweight.

Details of the Rack

  • Sliding Groove for Panels: Helps panels slide easily.
  • Positioning Protrusions: Ensures accurate placement.
  • Synchronizing Teeth: Keeps panels aligned.
  • Middle Handle: For easy movement.

Assembly Instructions

Prepare the Top Panels

Prepare the Top Panels

Start by distinguishing the inner and outer sides of the top panels. Ensure you know which side the pillars will attach to.

Install the Pillars

Insert the pillars into the inner sides of the top panels. Fasten them using the provided hex screws. Don’t forget to use washers under the screws for extra stability.

Install the Pillars of Aluminum SMT Magazine Rack

Mount the Fixed Panels

Mount the Fixed Panels

Align the fixed panel’s holes with the bottom panel’s holes. Secure them with screws, placing washers where needed.

Attach the Adjustable Panels

Align the clips of the adjustable panels with the round holes at the ends of the grooves. Push them into place firmly.

Attach the Adjustable Panels

Place the Upper Top Panel

Place the Upper Top Panel

Position the upper top panel with the inner side facing inward. Adjust everything to ensure the holes align. Use screws to secure it, adding washers as necessary.

Adjust the Position of the Panels

Open the clips on the adjustable panels. Push down evenly to slide them into place. Check that all clips fit correctly in their grooves.

Adjust the Position of the Panels

Secure the Adjustable Panels

Secure the Adjustable Panels

Adjust the panels to match the width of your PCB. Press down the clips to lock the adjustable panels in place.

Install the Stopper

Choose the right mounting hole based on your PCB size. Insert one end of the stopper spring into the hole and press it down to fit.

Install the Stopper

Conclusion: Quality and Standards

Our Aluminum SMT magazine rack meets strict quality standards. As a reliable manufacturer, we guarantee the durability and performance of our products. The rack is essential for efficient PCB storage and management in any SMT factory.


Discover more magazines with different dimension to suit your application.

Product NameModelMagazine Size
LxWxH
PCB Size(L*W)PCB Storage QtyWidth Adjustment
ESD Magazine RackE3353P355*320*563mm355*(50-355)MM50pcsScrew/Buckle adjustment
E4450P460*400*563mm460*(50-460)MM50pcsScrew/Buckle adjustment
E5550P535*460*570mm535*(50-390)MM50pcsBuckle adjustment
E5560P535*530*570mm530*(120-460)MM50pcsBuckle adjustment
Aluminum Magazine RackE3325A335*320*263mm350*(50-250)MM50pcsScrew/Buckle adjustment
E4450A460*400*563mm460*(50-330)MM50pcsScrew/Buckle adjustment
E5450A535*460*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
E5350A535*530*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
