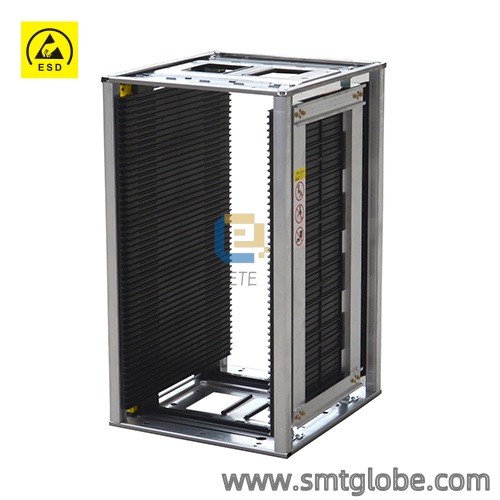

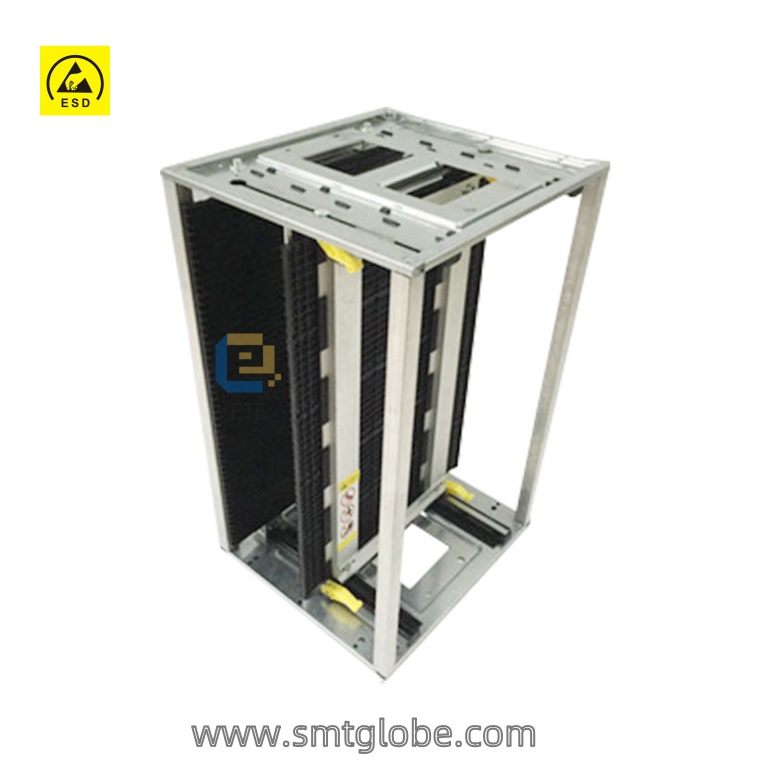

SMT PCB Magazine Rack 355x320x560mm

SMT PCB Magazine Rack made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.

Quick adjustment.

Contact: info@smtglobe.com

Share

SMT PCB Magazine Rack made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.ESD Magazines are widely used in SMT factories to facilitate the circulation, storage, and integrated management of PCB boards. They are essential for modern production management in manufacturing and outsourcing enterprises. The SMT SMT PCB Magazine Rack play a crucial role in streamlining the production process, ensuring efficient organization, and maintaining a high level of productivity in the electronics manufacturing industry.

Features:

The top and bottom surfaces of the SMT PCB Magazine Racks are molded from anti-static plastic in one piece, ensuring dimensional accuracy by directly molding the gear racks with the top and bottom surfaces to prevent any “sticking” during adjustment.

The fixed plate is securely fastened to the top and bottom surfaces, with the back secured to the aluminum frame using six screws for increased stability and durability.

The movable plate of the SMT PCB Magazine Rack is adjusted by sliding within the movable groove, allowing for the adjustment of the distance between the two plates to accommodate PCBs of different sizes for storage.

Additionally, the aluminum alloy columns of the SMT PCB Magazine Racks are formed using an extrusion process with a wall thickness of 1.5mm and a unique cross-section design to ensure structural strength while effectively reducing the overall weight of the product.

The structural principle of the SMT PCB Magazine Rack: When adjusting the width of the plate, the gear on the movable plate is driven by the synchronous shaft under the action of the gear racks on the top and bottom surfaces, synchronously driving the four clasps to slide in the grooves to keep the movable plate parallel to the fixed plate and prevent any jamming during adjustment. After adjusting to the desired position, tighten the clasps to secure the movable plate in place.

Specification

Product model: E2550M

Overall dimensions: 355x320x563mm

Specifications: length 355* width 50-250mm

Groove size: Groove length 355mm, groove width 5.0mm, groove depth 3.4mm, groove spacing 10mm

Basic size: A: 34mm, B: 34mm

Storage quantity: 50 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation

Static electricity indicator: Surface resistance 104-108 ohms

Temperature resistance of trough plate: □70℃, □120℃, □230℃, □300℃

Base plate material: plastic panel, anti-static material

Side panel structure: 5 pieces of plastic panels

Frame structure: aluminum alloy columns, brackets Baffle mechanism: hexagonal gear lever
