Are you looking for a versatile SMT magazine rack? Our SMT Magazine Rack ESD helps SMT factories improve their production. It safely stores PCBs and PCBAs. Additionally, it supports PCB loaders and unloaders for automatic PCB feeding.
Benefits of Using Our SMT Magazine Rack ESD
These racks offer many advantages. They help SMT factories organize and store PCBs and PCBAs efficiently. Moreover, they effectively remove static electricity. Thus, they protect electronic components and PCBs from damage.
Key Features of our SMT Magazine Rack ESD
Our racks have important features. They allow smooth operation and prevent boards from jamming. Adjusting the racks is easy and quick. Furthermore, we conduct multiple tests on our accessories and finished products. Therefore, we guarantee high quality and performance.
Two Types of SMT Magazine Rack ESD Available
We offer two common types of racks: one with screw adjustments and another with buckle adjustments.
Screw Adjustment Rack
- High-temperature resistance: Up to 200°C
- Durability: Strong and long-lasting
Buckle Adjustment Rack
- Quick installation: Easy to set up
- Durability: Built to last
Specification
| Adjustment method | Screw adjustment | |
| Specifications | ●Outer dimensions: | 355*31 5*315mm |
| ●Reference position: | A: 34mm; B: 35. 5mm | |
| ●Adjustable width: | 90-250mm | |
| ●Groove depth: | 3.5mm | |
| ●Slot width: | 7mm | |
| ●Pitch: | 10mm | |
| ●Number of slots: | 25 | |
| ●Weight: | 3.22Kg | |
| ●Carrying: | 10kg | |
| Product Description | ◆Baffle mechanism: spring lever | |
| ◆Static electricity index: 10e4-10e8 | ||
| ◆Side panel structure: whole panel | ||
| ◆Base plate material: plastic base plate | ||
| Temperature resistant options | 口80°C | |
| Optional accessories | Poka-yoke labels | |
| SMT Magazine Rack ESD spare parts list | |||||
| Top and bottom plate | 2 pcs | Moveable board | 1 pc | stopper | 1pc |
| Column | 4 pcs | Stationary board | 1pc | Screw gasket | 12 pcs+ 12 pcs |
| Note: The screws are adjusted to 2 non-moveable boards, referring to the following installation method | |||||

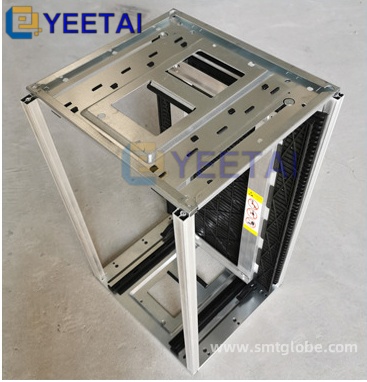

Installation Steps
Follow these simple steps to install the racks:
Packaging and Shipping Assurance
For shipping, our warehouse team carefully packages each batch of racks. This process ensures that the racks are not damaged during transport.
Conclusion
In summary, our SMT Magazine Rack ESD enhance production efficiency for SMT factories. They organize PCBs and PCBAs safely while protecting them from static. Choose our racks for their sturdy design and reliable performance.
