SMT Magazine Rack E3550M: Ideal for ESD Protection and PCB Storage
We have lots of experiences in ESD SMT magazine rack. Here we will introduce one of them.
The E3550M features excellent anti-static properties. It is perfect for SMT factories and PCB storage. Its surface resistance ranges from 10^4 to 10^9Ω. Our product provides reliable ESD protection for your sensitive electronic components.
SMT Magazine Rack ‘s Versatile and Durable for Various Applications
The E3550M is widely utilized in SMT processing plants, PCB manufacturing facilities, and computer motherboard factories.
Its construction resists acid. Safely storing PCB boards.
The design promotes convenient cleaning.
It also facilitates easy circulation of circuit boards. Thus the rack enables neat stacking.
And our magazine enhances overall management efficiency.
Specification
Product model: E3550M
Overall dimensions: 460*400*563mm
Specifications: length 460* width 50-330mm
Groove size: Groove length 460mm, groove width 5.0mm, groove depth 3.4mm, groove spacing 10mm
Basic size: A: 34mm, B: 34mm
Storage quantity: 50 slots
Adjustment method: manual adjustment, M6 hexagon socket screw fixation
Static electricity indicator: Surface resistance 104-108 ohms
Temperature resistance of trough plate: □70℃, □120℃, □230℃
Base plate material: Metal panel, galvanized carbon steel
Side panel structure: 5 pieces of plastic panels
Frame structure: aluminum alloy columns, brackets
Baffle mechanism: spring lever
Optional accessories: Accept non-standard customization
Key Components of the SMT Magazine Rack
- Antistatic Side Panels:
- The interior of the SMT Magazine Rack is primarily constructed from high-quality plastic. Therefore, the PCB boards remain scratch-free during storage.
- This design effectively prevents damage to electronic components. It provides excellent anti-static effects.
- Sturdy Columns:
- Each rack consists of four robust columns. It is secured with screws on both sides for added stability.
- The simple installation process significantly enhances the overall support strength of the rack.
- Metal Top and Bottom Plates:
- The durable metal bottom plate increases friction with the ground.
- With stability. Ensuring that the rack remains securely in place.

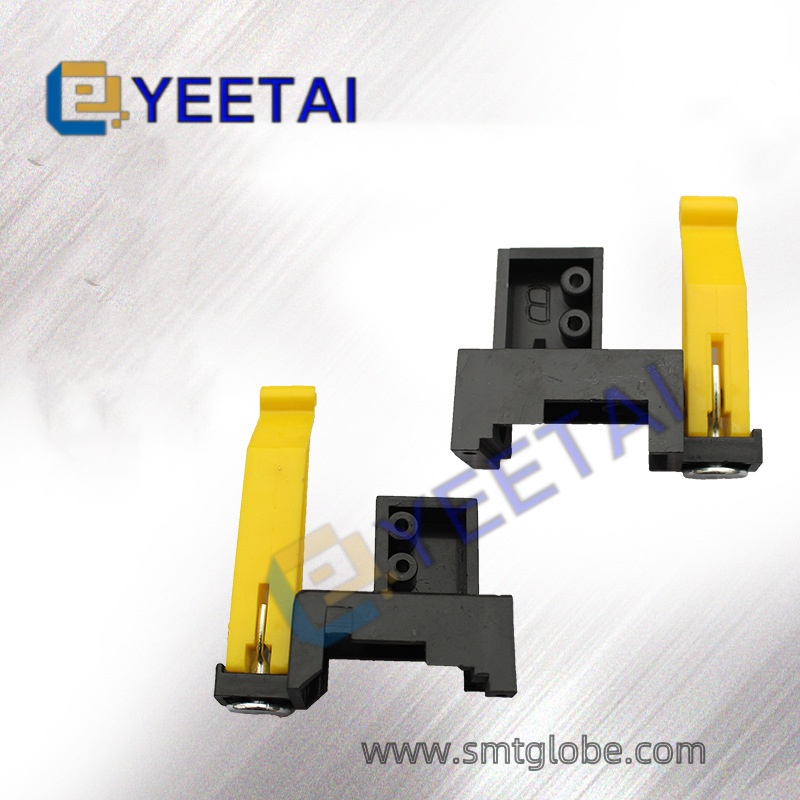

- Plastic Locking Clips:
- These clips secure the movable side panels, preventing them from detaching.
- The adjustable distance accommodates different product sizes.
- Besides, the plastic material ensures safety by protecting hands from injury.
- High-Performance Gear Strips:
- The gear strips undergo high-frequency quenching for superior strength.
- Wear resistance, and high transmission capacity, ensuring a strong load-bearing capacity for the rack.
Installation Instructions
Our SMT Magazine Rack is easy to install. Just follow below instructions. It may help you.
Conclusion
The SMT Magazine Rack E3550M is an essential asset for any SMT factory or PCB storage environment. It has robust anti-static properties and durable design. Thus it is a reliable choice for protecting valuable electronic components. If you’re looking for an efficient solution for PCB management, the E3550M is the perfect option.
For more information about the SMT Magazine Rack E3550M and how it can benefit your operations, please contact us today!
We also have other models for you to select.
More models below can meet your different needs.We also have new styles.
