The SMT Linking Conveyor greatly streamlines your production line. It is used as a visual inspection station between operators and machines. The SMT Linking Conveyor features a smooth parallel adjustment for screw width, a strengthened structural design for improved stability, and adjustability to accommodate PCBs of various widths. It is also SMEMA compatible, allowing seamless communication with machines in the SMT/THT production line. Besides,the conveyor offers multi-segment concept, automatic/manual modes, variable speed control, inspection button, and a modular design with PLC control. Additionally,its heavy design enhances stability during operation.

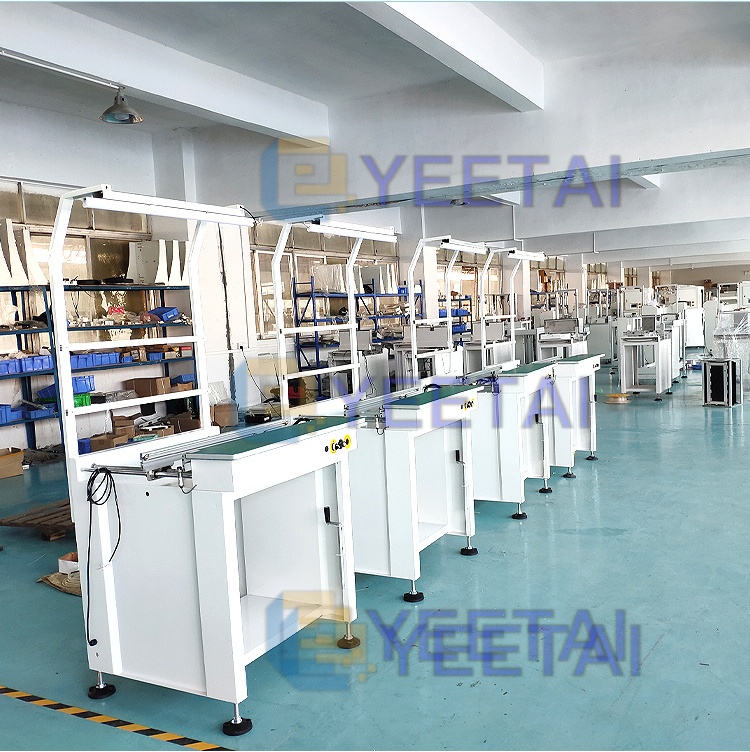

Basic linking conveyor Features

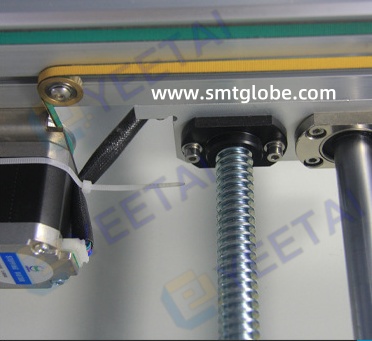

Smooth parallel to the width of the screw adjustment.
Strengthening the structural design to improve the stability of the equipment.
SMT Linking Conveyor is adjustable to make it compatible with PCBs with various width.
SMEMA compatible,the SMT Linking Conveyor well communicates with machines in SMT/THT production line.
Multi‐segment concept available upon request
Automatic/Manual modes
Variable speed control
Inspection button
Modular design, PLC controlled
Stability enhanced by heavy design
Worktable included by default
Optional functions as below.
Anti-dust Covers
Touch screen
High-Clearance on request
Cooling fans on top/bottom for after-reflow
Light system for better inspection
Support for Monitor
Shelf with ESD component boxes

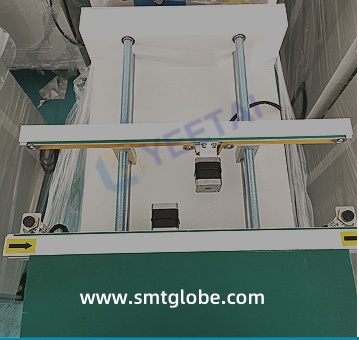

Motorized/Automatic width adjustment
Choice of different belt width and chain transport system
Mechanical stopper
Foot pedal pass control
Narrow footprint
With bottom cabinet
Specification
| Model | E-4600 |
| Outline dimension(LxWxH) | 500/600/700/800/1000…x786x900mm |
| Conveyor length | 500, 600,650, 700, 750,800, 1000, 1200, 150, 2000mm (customizable） |
| ESD work bench | Width=200mm |
| Suitable for PCB size(L*W) | 50*50~460*460mm |
| PCB width adjustable | 50-460mm, Max.460mm |
| Transport height | 900±20MM |
| PCB transport direction | L-R(R-L), easy adjustment by user |
| Speed | 0-20m/min adjustable |
| Belt type | ESD belt |
| Power supply | AC220V1P 50/60Hz |
| Power Consumption | Approx.30W |
| Max PCB weight | 1.5kg/PCB |
| Machine weight | 50-70KG |
| Communication | SMEMA compatible |
| Width adjustment | With button, easy manual control |
| Fixed Rail | Front side or back side (selectable) |
| Transporting mode | Inspection and by-pass mode |
