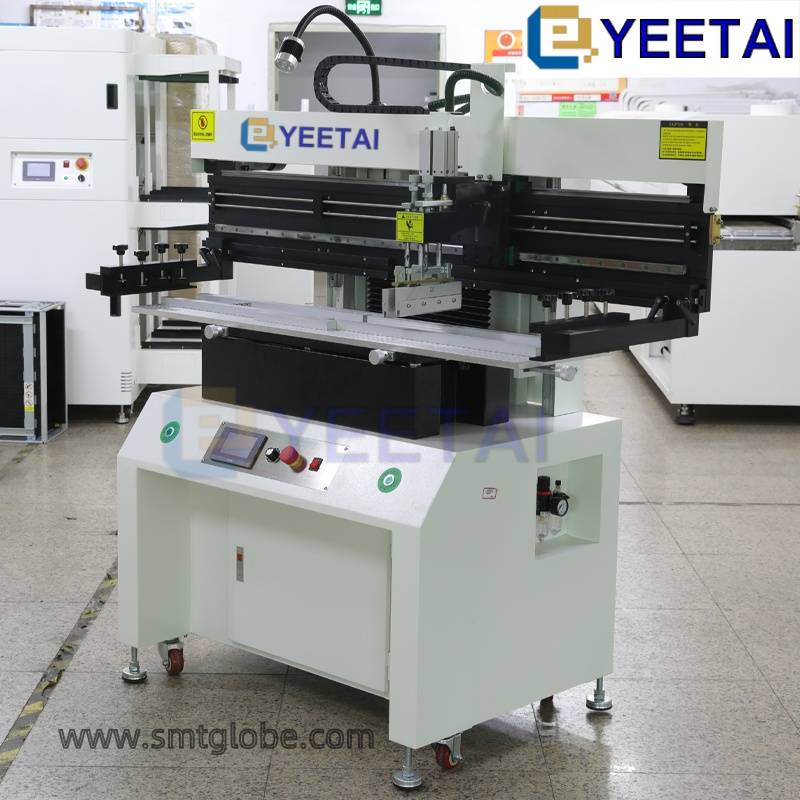

Revolutionizing PCB Printing with Our Semi-Automatic Screen Printer
In the rapidly evolving world of electronics, precision and efficiency are important, particularly in the production of printed circuit boards (PCBs). YEETAI TECHNOLOGY, a manufacturer based in China, is proud to offer our state-of-the-art Semi-Automatic Screen Printer. You can use this cutting-edge machine to print solder paste on PCB surfaces with unparalleled accuracy. It works well with both PCBs and SMT stencils.
Key Features of the Semi-Automatic Screen Printer
Our Semi-Automatic Screen Printer is designed with advanced technology. Thus, it ensures high-quality printing and reliability. Here are some of its standout features:

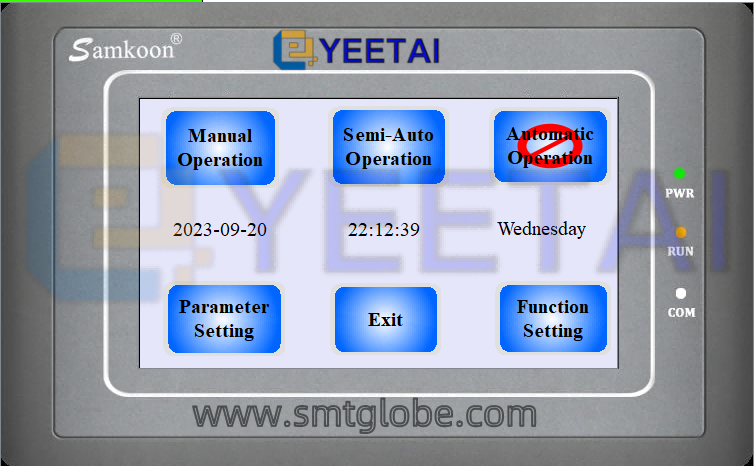

Microcomputer Control with Touch Screen Display:
The printer is equipped with a microcomputer control system. It also features a user-friendly touch screen display and menu operation interface. Therefore, it is easy for operators to manage the printing process efficiently.
Floating Blade Technology:
Inspired by automatic MPM printing machines, our printer uses a floating blade mechanism. This allows the scraper to freely float up and down. And it automatically adjusts the level to perfectly match the stencil. Ultimately it ensures consistent solder paste application.
- Adjustable Scraper Pressure: The pressure on the SMT stencil can be tailored according to the specific length of the scraper for different applications. This feature enhances the printing quality and flexibility for various PCB types.
- Stable Scraper Running Speed: The inclusion of a frequency converter speed regulation system ensures that the scraper operates at a stable speed. It is crucial for maintaining printing accuracy and efficiency.
- Enhanced Safety Features: The operation of the printer is safeguarded with a two-hand button switch. This promotes safe and reliable usage. Additionally, the printer features an emergency stop function for added safety.
- Customizable Pause Timing: Operators can set the entire stencil pause time independently through the intuitive touch screen menu. Hence, this allows for greater control over the printing process.
- Versatile Positioning Methods: Our printer offers multiple PCB positioning and fixing methods, including reference hole positioning, reference edge positioning, and simultaneous positioning of both the reference edge and reference hole with the stencil.
- Comprehensive Touch Screen Functions: The touch screen not only displays the time and allows for automatic counting of print cycles but also includes a screen protection function to enhance durability.
- Variable Scraper Speed: You can adjust the speed of the scraper based on specific requirements. We provide flexibility in the printing process.
- Diverse Printing Modes: The screen printer supports various printing modes, including single, double, and secondary startup options. This is available through menu settings.
- Flexible Working States: Users can choose between automatic, semi-automatic, and inching printing states. All are adjustable via the menu for optimal production flow.
Here are technical parameters of Semi-Automatic Screen Printer:
| Product Name | Semi-automatic Screen Printer | |

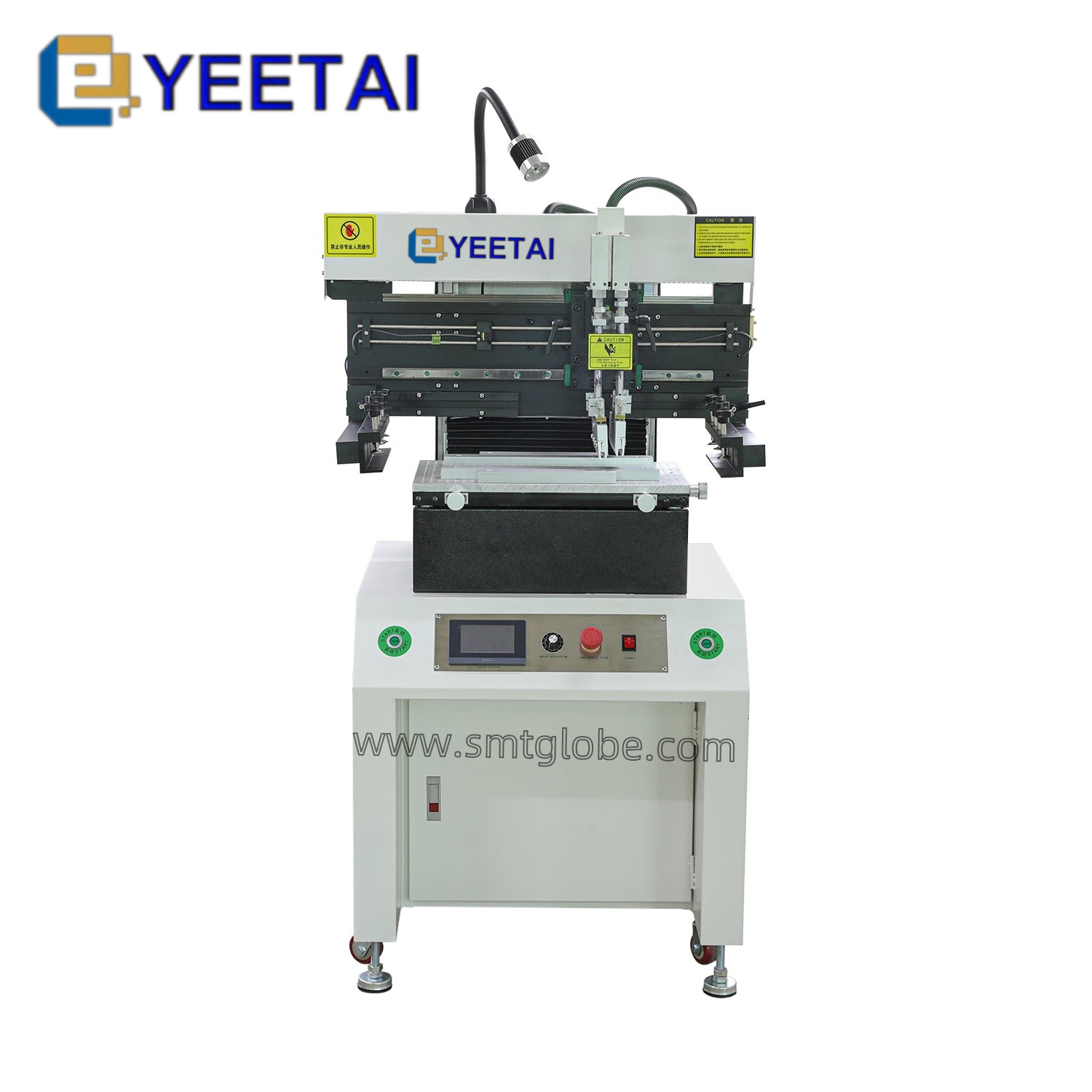

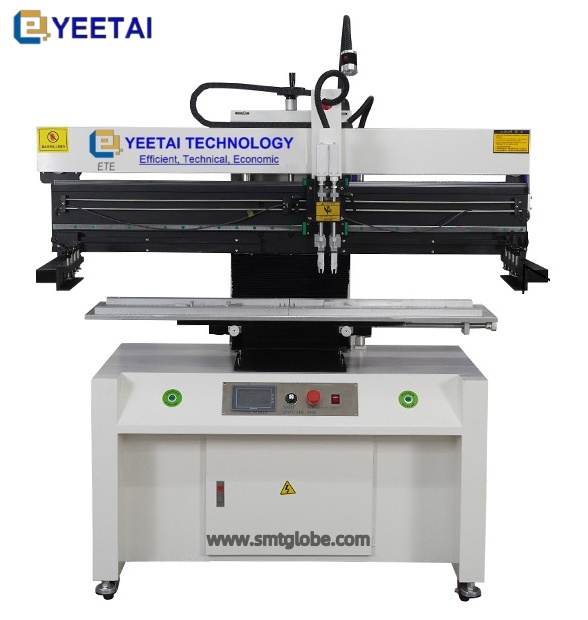

| Model | YT-1200 | YT-605 |
| Direction of movement | Move left and right | |
| Workbench | 1250*320mm | 700*500mm |
| Printing Range | 1200*320mm | 600*500mm |
| Workbench Thickness | 80mm | |
| Power Supply | Single phase 220V | |
| Dimension | 1680*780*1650mm | 860*780*1650mm |
| Air Supply | 0.5-0.8mpa | |
| Starting Power | 0.2KW | |
| Weight | About 300KG | About 210KG |
| Positioning | PCB Outer or Pin Positioning | |
| Steel mesh clamping device | Manual locking | |
| Power Supply | Single phase 220V 50/60Hz | |
| Moving Motor | Three-phase motor 60W | |
| Moving Speed | 0-2200mm/min | |
| Printing Precise | ±0.02mm | |
| Linear Guide | Taiwan silver linear guide | |
| PLC Control | Siemens | |
| Touch Screen | 4.3# Samkoon control screen | |
Why Choose YEETAI TECHNOLOGY?
At YEETAI TECHNOLOGY, we understand the challenges faced in the PCB manufacturing process. Our Semi-Automatic Screen Printer is designed to meet the evolving demands of the industry. It ensures that high-quality production is both efficient and consistent. With advanced features and a focus on safety, our printers help manufacturers enhance productivity while minimizing errors.
By incorporating our Semi-Automatic Screen Printer into your production line, you can achieve superior results with less downtime and increased efficiency. As a trusted name in the industry, YEETAI TECHNOLOGY provides top-quality products that facilitate innovation in electronics manufacturing.
Most importantly, it is suitable for those middle-size SMT factories who produce LED etc. It is an affordable solution.
For more information about our Semi-Automatic Screen Printer and other products, please visit our website or contact us directly. Join us in revolutionizing the future of PCB printing!
