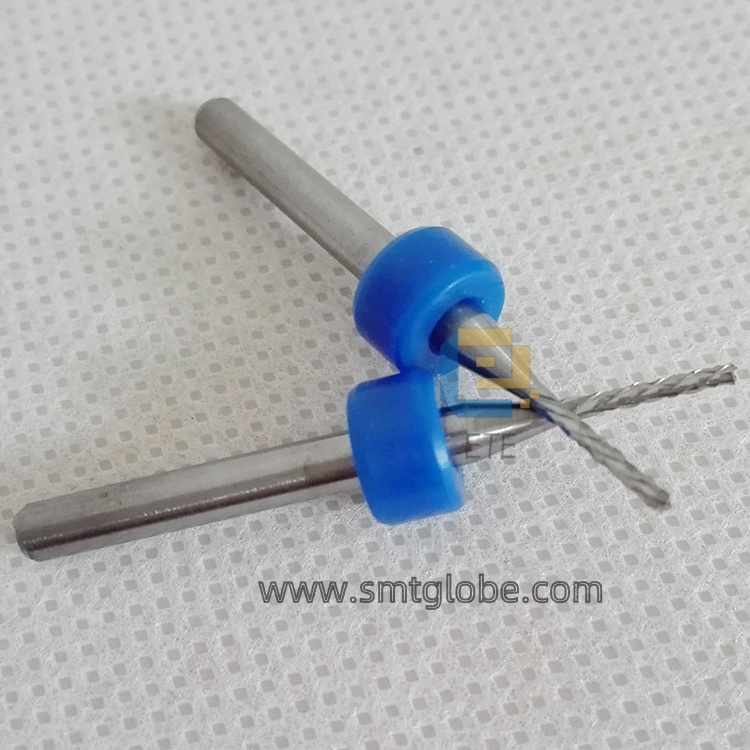

PCBA router bits are essential tools used in PCB assembly processes, particularly in PCB routing machines, for cutting non-linearly connected PCB panels. These router bits are specifically designed to divide PCB panels with complex shapes such as stamp holes, arcs, L-shaped junctions, and more. They are most commonly used for aluminum substrates due to their ability to provide precise and clean cuts.

Specification

Material: Imported tungsten carbide cobalt alloy (commonly known as tungsten carbide or tungsten steel)

Applicable equipment: PCB depaneling machine, engraving machine, CNC and other high-precision milling equipment.

Processing range: circuit boards / bakelite / epoxy board / gold, silver, copper and iron and other precision parts of the cutting and molding processing

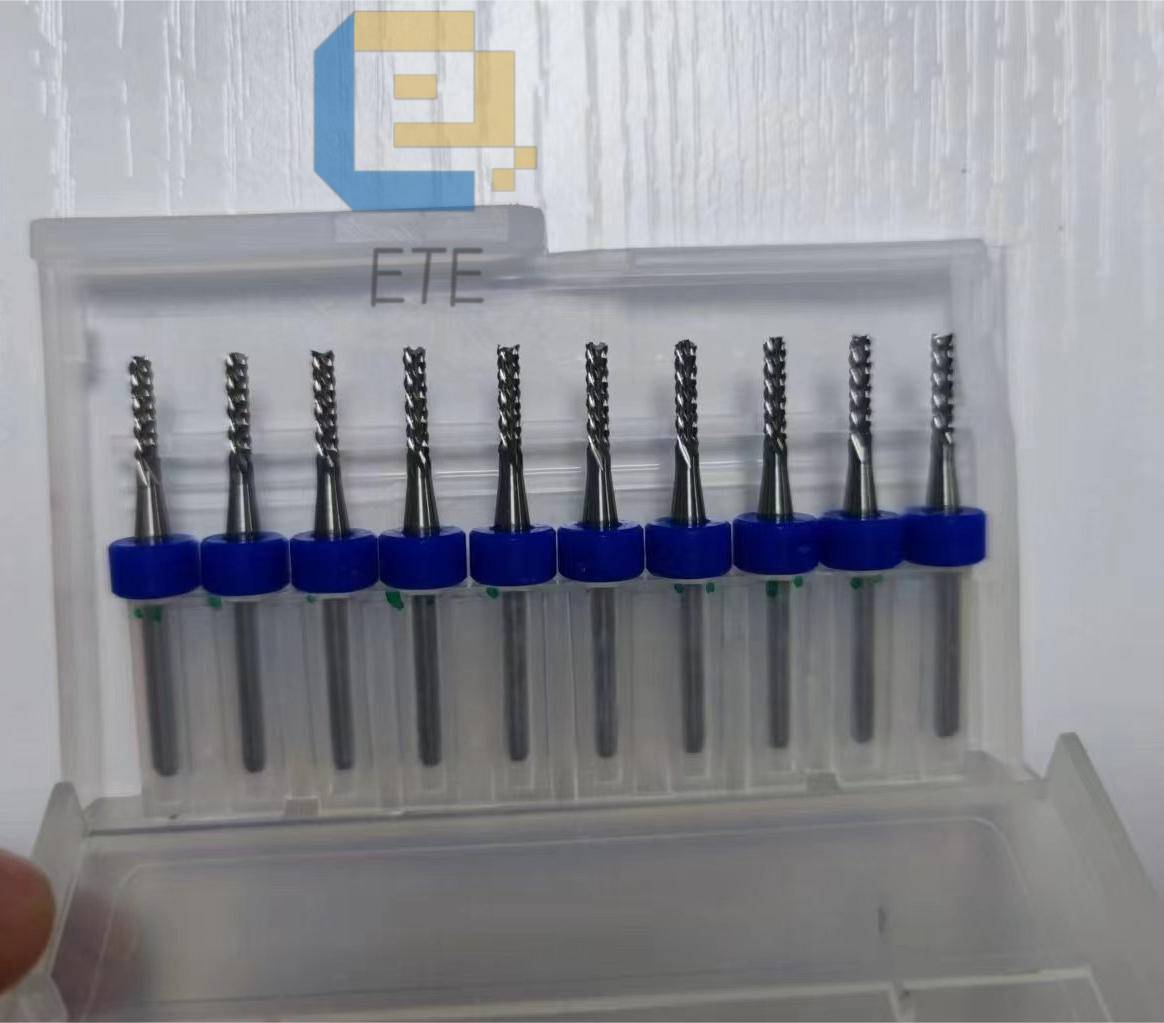

Packing specification: 10pcs/box, 50pcs/box

Features

Our PCBA router bit is made of internationally renowned brand granular tungsten cobalt alloy rods. It features high hardness, high wear resistance, high strength, bend resistance, break resistance, and long tool life. The router bit has excellent milling and cutting performance, milling grooves, holes, and board edges, leaving clean, neat, and burr-free surfaces to ensure work efficiency. (Compliant with the EU “ROHS” environmental directive)

One of the key advantages of using PCBA router bits is their ability to deliver smooth cuts without any burrs. Additionally, these router bits offer high precision and low stress cutting, resulting in accurate and clean separations of intricate PCB designs. The high-quality cuts achieved by PCBA router bits contribute to the overall quality of the PCB assembly process and reduce the need for post-processing.

Our company specializes in the manufacturing of PCB routing machines and also offers a diverse range of router bits that are compatible with various brands of routing machines. Whether you require standard-sized router bits or custom-sized router bits to meet specific project requirements, we have the capability to accommodate your needs.

With our expertise in producing high-quality PCBA router bits, we prioritize precision, durability, and performance to ensure optimal cutting results and customer satisfaction. Our router bits are designed to provide consistent and reliable performance, making them an ideal choice for PCB assembly operations that demand intricate cutting solutions.

By selecting our PCBA router bits, you can rely on the superior quality, precision, and efficiency that will enhance the routing process and enable the production of flawlessly cut PCB assemblies.
