PCB Storage Rack E3532R

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

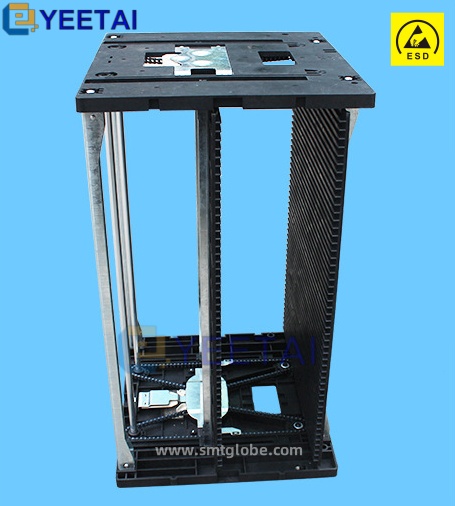

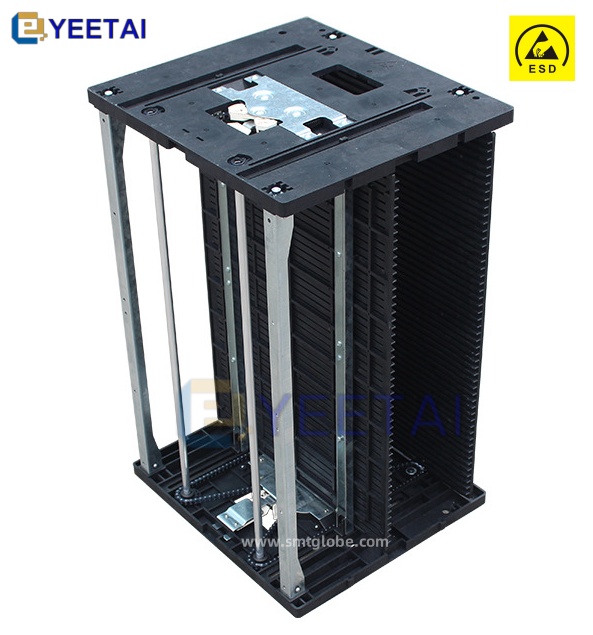

PCB Storage Rack E3532R

PCB Storage Rack E3532R made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.It has a large storage capacity of 50 PCBs.

Contact: info@smtglobe.com

Share

PCB Storage Rack E3532R made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.It has a large storage capacity of 50 PCBs.

PCB Storage Rack, also known as PCB holders, PCB magazine racks, SMT turnover racks, PCB collection boxes, PCB automatic loading racks, and SMT loading and unloading racks, are products with anti-static properties. They can effectively dissipate the static charges accumulated on the surface of PCBs, preventing charge accumulation and high potential differences. With characteristics of toughness, wear resistance, moisture resistance, corrosion resistance, heat insulation, and shock resistance, these racks can significantly reduce the damage rate of electronic products during the production process, lowering costs, enhancing product quality and profitability, and offering excellent value for money. Each loading rack can accommodate 25-50 PCB boards, providing convenience and efficiency, making it widely used in electronic factories.

Specification

Adjustment methodNot adjustable
Specifications●Outer dimensions:330* 192*506mm
●Reference position:A: 33. 5mm; B: 42mm
●Adjustable width:138mm
●Groove depth:2.8mm
●Slot width:13 mm
●Pitch:16 mm
●Number of slots:25
●Weight:9.2Kg
●Carrying:30kg
Product Description◆Baffle mechanism: paddle baffle
◆Static electricity index: 10e4-10e8
◆Side panel structure: whole panel
◆Base plate material: aluminum alloy base plate
Temperature resistance220C°C (can enter 180°C oven)

Fine More PCB Storage Rack to suit your needs in below chart.

Magazine Rack Dimension
LxWxH (mm)
PCB Width(mm)Slot Length(mm)PCB Storage Qty(pcs)Surface Resistance
355x320x26350-25035020Surface Resistance: 10^4-10^6 ohms
System Resistance: <=10^9 ohms
Test environment :25±
RH: 55%±5%
355x315x31590-25035025
355x315x36590-25035030
355x320x56350-25035050
355x320x56550-24035050
465x400x56350-33046050
535x460x57050-39053050
535x530x570120-46053050

Advantages of PCB Storage Rack:

  1. Excellent anti-static performance: Made of high-quality anti-static materials, it effectively dissipates static charges, ensuring the safety of electronic components.
  2. Rational design: Ergonomically designed for easy operation, enhancing production efficiency.
  3. High load-bearing capacity: Our PCB Storage Rack has a high load-bearing capacity to meet diverse customer needs.
  4. Durability: Using high-quality materials and advanced production processes ensures product durability and long service life.

Factory

Welcome to visit our factory to learn more about PCB Storage Rack. If you would like to have a deeper understanding of ESD Magazine Rack, you are welcome to visit our factory. Our company has high-quality electrostatic professionals and management team, as well as strong R&D capabilities. For many years, we have been dedicated to the research, production, and sales of antistatic consumables such as ESD Magazine Rack, ESD PCB Storage Trolley, ESD Chair, etc. With high-quality products and excellent services, we have received consistent praise from customers and have become a leading company in the antistatic industry with significant influence in the industry.

The ESD Magazine Rack produced by our company strictly complies with international standards such as IEC 61340-5-1, ANSI/ESD-S20.20, and the international military standard GJB3007-2009. We have passed the strict implementation of the ISO 9001:2015 quality management system, ISO 14001:2015 environmental management system, and the product materials have been inspected by SGS to comply with the requirements of the ROHS 2.0 EU environmental directive.
