PCB Magazine Rack E50AM

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

PCB Magazine Rack E50AM

PCB Magazine Rack that works seamlessly with SMT loaders and unloaders, facilitating smooth PCB handling and storage processes.Contact: info@smtglobe.com

Share

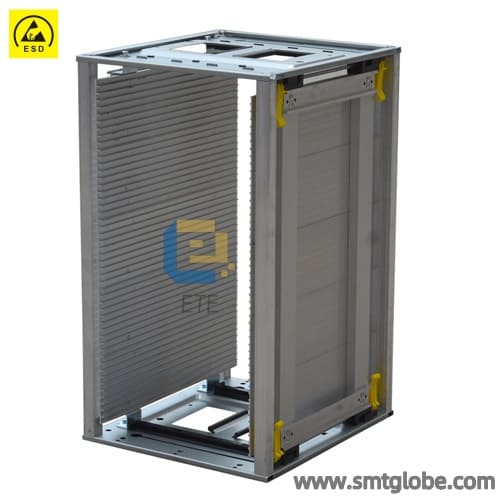

PCB Magazine Rack is designed for seamless PCB storage and retrieval, providing efficient workflow in SMT environments. Smooth moving.

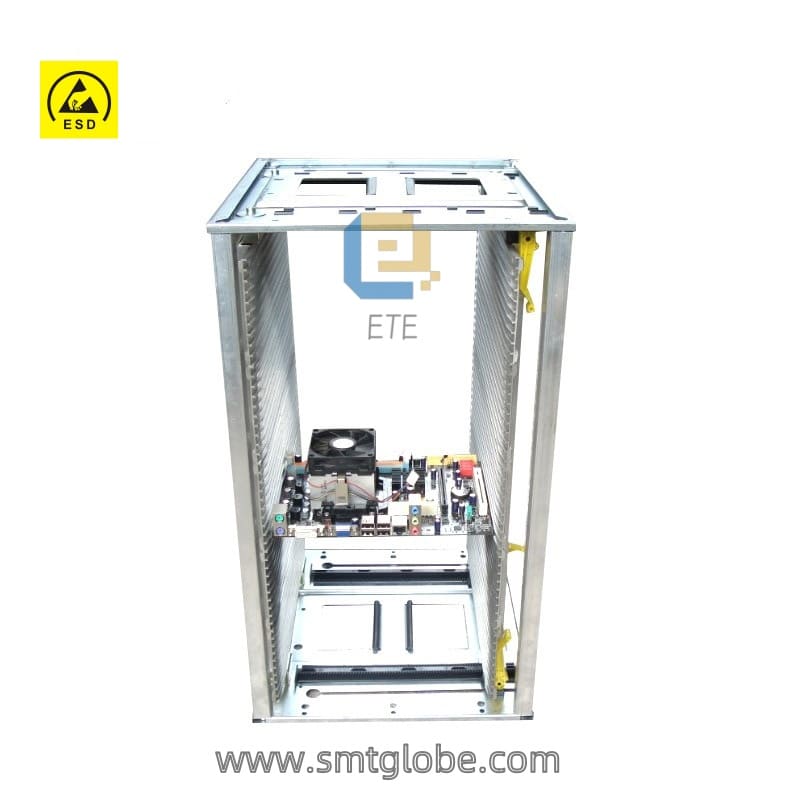

The PCB Magazine Rack is made of aluminum alloy and can support usage in high-temperature ovens. The SMT PCB Magazine Rack is from aluminum alloy and can support usage in high-temperature ovens. It has a wide range usage in SMT processing plants, PCB factories, and computer motherboard factories. The rack is resistant to acid, alkali, and oil, non-toxic and odorless, suitable for storing PCB boards. The magazine rack facilitates convenient cleaning, easy circulation of circuit boards, neat stacking, and efficient management.

With its rational design and superior quality, the PCB Magazine Rack is suitable for transportation, distribution, storage, and processing in factories, preventing static electricity on PCBs. It can be used in conjunction with various logistics containers and workstations in warehouses, production sites, and other scenarios, helping enterprises complete the circulation, storage, and integrated management of PCB boards. It is an excellent choice for modern production management in manufacturing and outsourcing enterprises.


Specification

Product model: E55AM

External dimensions: 355 * 320 * 563mm

Usage specifications: 355 length * 50-250mm width

Slot size: slot length 355mm, slot width 7.5mm, slot depth 3.4mm, slot spacing 10mm

Reference dimensions: A: 34mm, B: 34mm

Storage quantity: 50 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation (optional □ screw adjustment)

Static electricity index: surface resistance 104-109 ohms

Temperature resistance of groove plate: □ 300 ℃

Bottom plate material: metal panel, galvanized carbon steel material

Side panel structure: 5 aluminum alloy panels

Framework structure: aluminum alloy columns, brackets

Baffle mechanism: spring lever

Optional accessories: accept non-standard customization

Product NameModelMagazine Size
LxWxH
PCB Size(L*W)PCB Storage QtyWidth Adjustment
ESD Magazine RackE3353P355*320*563mm355*(50-355)MM50pcsScrew/Buckle adjustment
E4450P460*400*563mm460*(50-460)MM50pcsScrew/Buckle adjustment
E5550P535*460*570mm535*(50-390)MM50pcsBuckle adjustment
E5560P535*530*570mm530*(120-460)MM50pcsBuckle adjustment
Aluminum Magazine RackE3325A335*320*263mm350*(50-250)MM50pcsScrew/Buckle adjustment
E4450A460*400*563mm460*(50-330)MM50pcsScrew/Buckle adjustment
E5450A535*460*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
E5350A535*530*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
ESD-Magazine-Rack

The PCB Magazine Rack produced by our company strictly complies with international standards such as IEC 61340-5-1, ANSI/ESD-S20.20, and the international military standard GJB3007-2009. We have passed the strict implementation of the ISO 9001:2015 quality management system, ISO 14001:2015 environmental management system, and the product materials have been inspected by SGS to comply with the requirements of the ROHS 2.0 EU environmental directive.


How to assemble Aluminum SMT Magazine Rack?

  1. Press down the gear strip firmly or use a cone to knock it down.
  2. After installing the gear strip, fix the four corners with screws.
  3. Take the fixing plate and align it with the holes as shown in the figure, then tighten the screws.
  4. Flip over the other end and install the movable plate, aligning it with the round hole of the buckle.
  5. Cover the bottom plate, install the screws, push up the round head of the buckle, and then pull it.
  6. Place the gear lever on top, assembly is complete.
