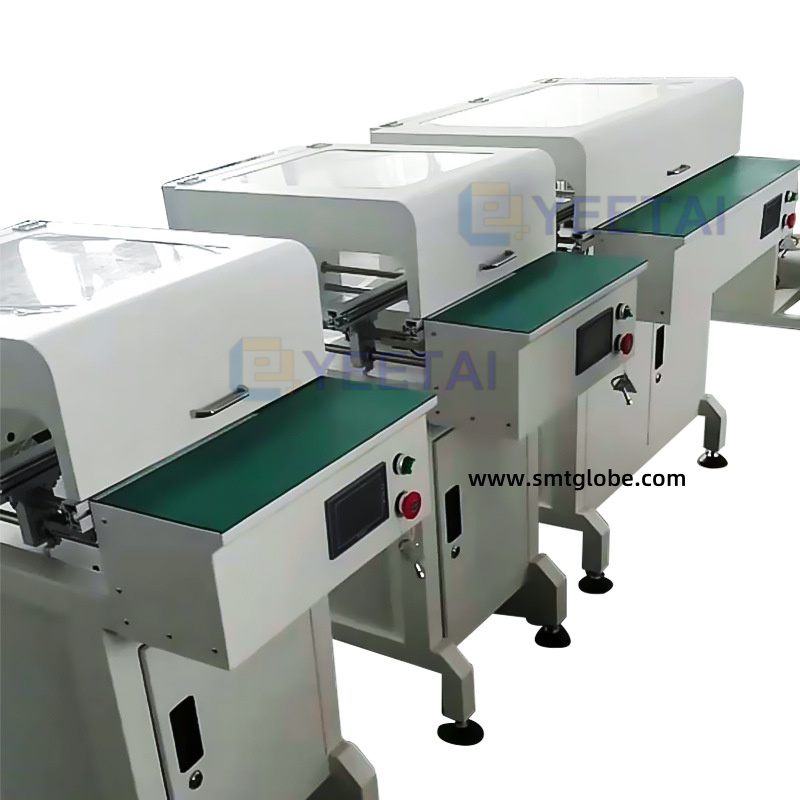

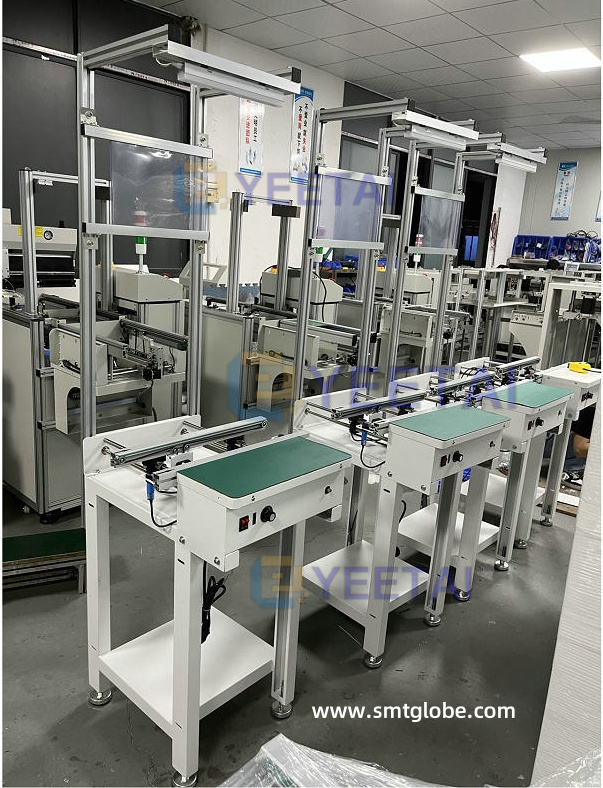

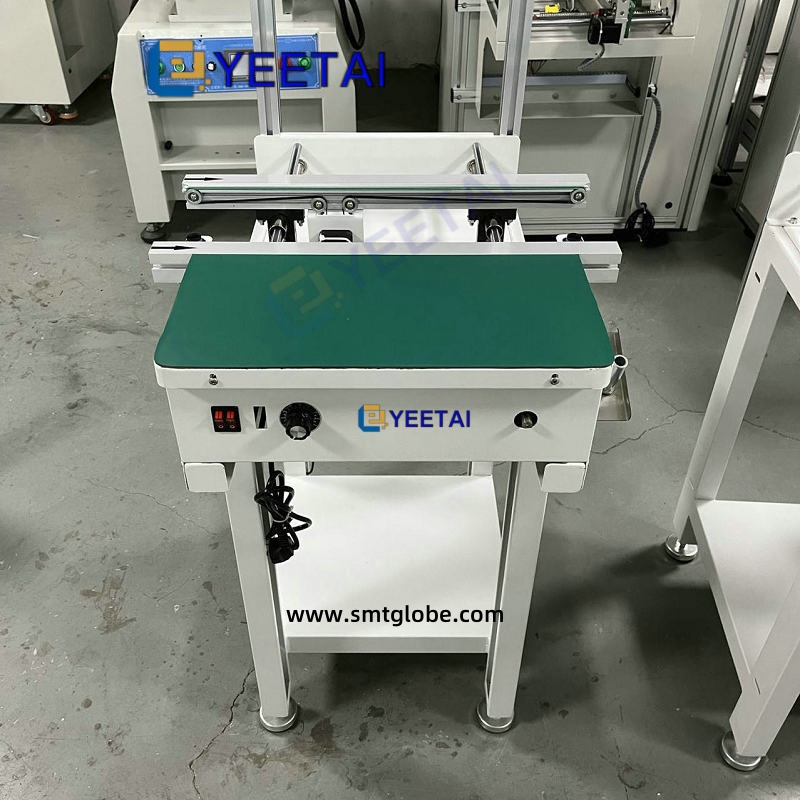

The Linking Conveyor inspection greatly streamlines your production line. It is used as a visual inspection station between operators and machines.
It works smoothly, passing PCBs from one machine to another neighboring machine. With various working length, the linking conveyor streamlines full SMT production. The conveyor can also be customized with 2 segments and equipped with lighting system for better inspection.
Linking conveyor Inspection Features
Smooth parallel to the width of the screw adjustment.
Strengthening the structural design to improve the stability of the equipment.
Linking Conveyor is adjustable to make it compatible with PCBs with various width.
SMEMA compatible,the SMT Linking Conveyor well communicates with machines in SMT/THT production line.
Multi‐segment concept available upon request
Automatic/Manual modes
Variable speed control
Inspection button
Modular design, PLC controlled
Stability enhanced by heavy design
Worktable included by default
Optional functions as below.
Anti-dust Covers
Touch screen
High-Clearance on request
Cooling fans on top/bottom for after-reflow
Light system for better inspection
Support for Monitor
Shelf with ESD component boxes
Motorized/Automatic width adjustment
Choice of different belt width and chain transport system
Mechanical stopper
Foot pedal pass control
Narrow footprint
With bottom cabinet
Specification
| Model | E-460L |
| Outline dimension(LxWxH) | 500/600/700/800/1000…x786x900mm |
| Conveyor length | 500, 600,650, 700, 750,800, 1000, 1200, 150, 2000mm (customizable） |
| ESD work bench | Width=200mm |
| Suitable for PCB size(L*W) | 50*50~460*460mm |
| PCB width adjustable | 50-460mm, Max.460mm |
| Transport height | 900±20MM |
| PCB transport direction | L-R(R-L), easy adjustment by user |
| Speed | 0-20m/min adjustable |
| Belt type | ESD belt |
| Power supply | AC220V1P 50/60Hz |
| Power Consumption | Approx.30W |
| Max PCB weight | 1.5kg/PCB |
| Machine weight | 50-70KG |
| Communication | SMEMA compatible |
| Width adjustment | With button, easy manual control |
| Fixed Rail | Front side or back side (selectable) |
| Transporting mode | Inspection and by-pass mode |
| Lighting system | LED illumination |
