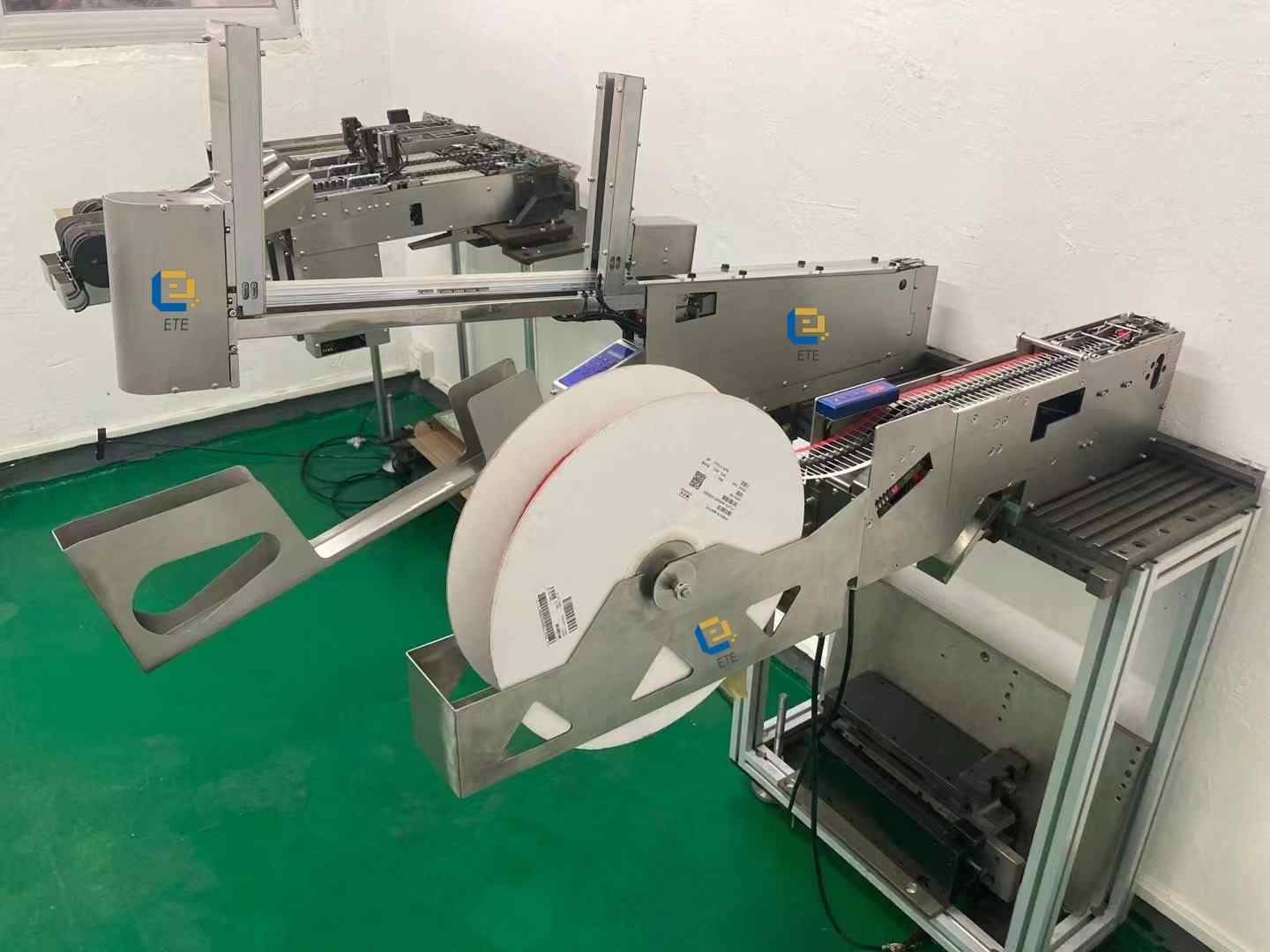

IC MOS tube feeder ETE-TF03 for Fuji, Juki, Panasonic, Yamaha, Siemens, Samsung, and Mydata SMT machine

The IC MOS tube feeder automatically delivers tube-packed components to pick and place machines in precisely defined positions. Its compact and durable design offers flexibility and simplicity, making automated PCB assembly easy. Great integration with existing SMT lines. Compatible with a wide range of pick and place machines from brands such as Fuji, Juki, Panasonic, Yamaha, Siemens, Samsung, and Mydata. info@smtglobe.com

  1. Labor-saving
  2. Enhanced efficiency.
  3. Suitable for a wide range of tube-packed materials, including triodes, connectors, and ICs.
  4. Supports Fuji, Juki, Panasonic, Yamaha, Siemens, Samsung, and Mydata.
  5. Customizable: Choose from different sizes to match your specific production requirements.
  6. Longevity: Built for durability with a 5-year service life and a 4-million-times bending life for the cutter.
Share

IC MOS Tube Feeder: The Space-Efficient Solution for Automated Component Feeding

Our IC MOS Tube Feeder with exceptional space efficiency, featuring a compact design with a width of less than 50mm. This makes it an ideal choice for manufacturing environments where space is limited. Powered by a reliable motor, it provides efficient product transport and plays a crucial role in enhancing production capabilities.Overall, the our feeder offers space-saving design, efficient operation, and compatibility with different equipment, making it a valuable addition to automated production lines.


Key Features of IC MOS Tube Feeder:

  • Compact Design
    With a width of under 50mm, our feeder saves valuable workspace while maintaining high functionality.
  • Motor-Powered Operation
    The motor serves as the driving force for transporting various tube-packaged materials seamlessly.
  • Front and Back Material Separation
    This feature enables precise material pin alignment, ensuring accuracy during the manufacturing process.
  • Versatile Compatibility
    The IC MOS Tube Feeder is compatible with any pick-and-place machine, significantly enhancing its usability in various manufacturing setups. It works with leading brands such as Fuji, Juki, Panasonic, Yamaha, Siemens, Samsung, and Mydata, making it adaptable for different production lines.
  • Automatic Insertion Capability
    Designed to handle tube-packaged materials for DIP components, the feeder enables automatic insertion of transistors and heat sink screws, significantly reducing manual labor.
  • Collaboration with Robotic Arms
    When paired with robotic arms, the IC MOS Tube Feeder automates production processes, eliminating the need for manual intervention.
  • Customizable Sizes
    Users can select tube-packaged feeders of various models and sizes to tailor the solution to their specific site requirements.
  • Material Pin Recycling Function
    This innovative feature collects excess pins and holds them in position for retrieval by the upper computer system, facilitating efficient material management.
  • Stackable Design
    The feeder allows for stacking multiple tube-packaged materials, enabling smooth, unmanned tube replacement operations.
  • Advanced Pin Bending and Cutting
    The built-in device for pin shaping and cutting enhances manufacturing accuracy by allowing precise customization based on user specifications.

Specifications of IC MOS tube feeder

ModelIC MOS tube feederETE-TF03
Dimensionslength x width x height1350x92x115mm
weight25Kg
Applicable materialsMaterial typeRelays, terminals, transformers, square capacitors, round capacitors
Dimensions3x3x3mm-25x25x25mm
tubePVC material pipe, aluminum pipe
Barrel Length200-650mm
Barrel wall thickness>0.6mm
Structural partFeeding methodIncoming material in tubes, multi-tube stacking
Feeding powermotor drive spring
Material positioning methodOptical fiber sensing + software compensation
a fixed wayPositioning key + pressing block, supporting other fixed structures
Receiving tubeevacuation by cylinder, recovery box at the bottom
Electrical partOperating Voltage24V
Average Current/Peak Current4A/6A
working pressure0.4-0.6Mpa
Operation methodkey operation
Host computer connection8 core ø16mm aviation plug
communication methodSupport IO communication or self-control without communication
software controlBased on ARM (STC32)
drive modestepper motor
Motor typeType 57
motor speed600 rpm
Feeding partFeeding speed0.8S
Feed channelSingle-channel feeding (double-channel feeding can be customized)
speed gearFour gears adjustable
Feeding accuracy±0.5mm
Test recordFeed testRealize 1000 times of continuous feeding without exception
Aging testContinuous operation for 48 hours without exception
service life5 years’ service life
Cutter life4 million times bending life

Advantages of IC MOS tube feeder:

  1. Labor-Saving Automation
    The Tube Feeder automates component transport and placement, significantly reducing manual labor costs.
  2. Enhanced Production Efficiency
    It maximizes the utility of your SMT line without requiring additional machinery, streamlining operations and saving costs.
  3. Versatile Compatibility
    Suitable for a diverse range of tube-packed materials (such as triodes, connectors, and ICs), it integrates seamlessly with various machine brands.
  4. Customizable Solutions
    Choose from different feeder sizes and models to meet your specific production requirements effectively.
  5. Durable Construction
    Built for longevity, the IC MOS Tube Feeder boasts a 5-year service life and a 4 million bends life expectancy for the cutter.
  6. Efficient Pin Shaping
    The advanced features allow for customizable pin shaping, improving compatibility and fit during assembly.
  7. Streamlined Processes
    Reduce preparation time and effort with the IC MOS Tube Feeder’s capability for pin forming and cutting based on user requirements.
