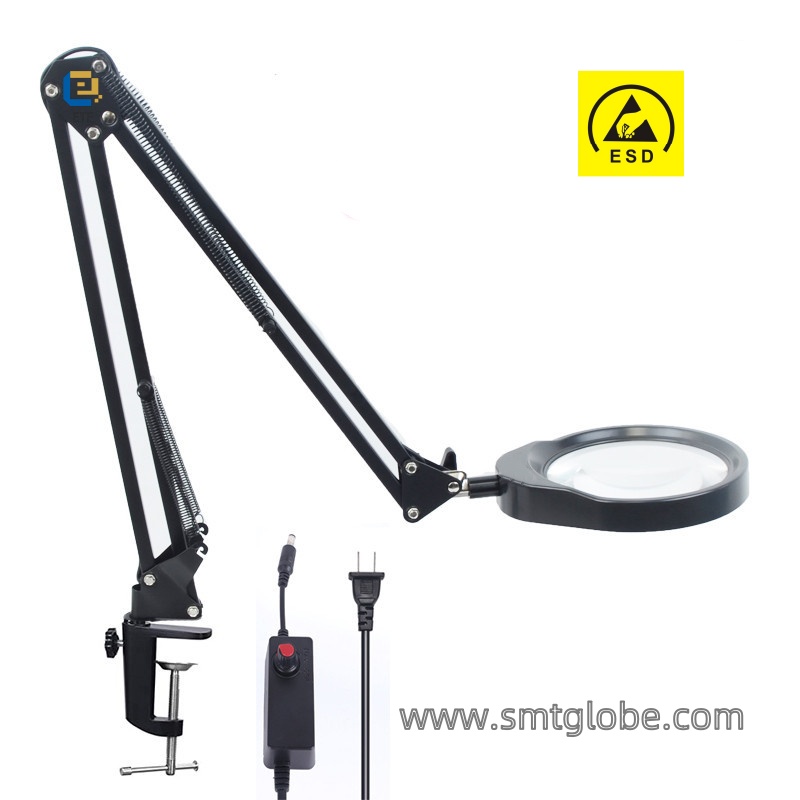

The ESD UV Magnifying Lamp is useful on the production line of an electronic factory, for soldering circuit boards, and BGA rework. The main function of this product is to provide users with a clearer view of the target object, making it easier to observe and work with precision.Also suitable for conformal coating inspection.
Specification:
| Product Name | ESD UV Magnifying Lamp E435127T |
| Lens magnification | White glass/blue glass single 10x, white glass 10/20X optional |
| Diameter/Material | 127mm/glass lens + metal hose bracket + ABS lamp head |
| Installation fixture | Suitable for 0-50mm thick workbench tops |
| metal pipe wall | 350mm each arm |
| light source | 48 SMD LED lamp beads |
| Power supply | Powered by USB interface |
| Applicable voltage | Voltage 100-25v, power cord length 1.2m |
| color/weight | Black, white/1.2KG |
| Scope of application | Electronic maintenance/SMT factory/teaching experiment, etc. |
The ESD UV Magnifying Lamp is designed with glass lenses to protect your eyes and provide a large field of view, suitable for tasks such as mobile phone repair, circuit board repair, and other electronic maintenance.
Crafted to be closer to natural light and protect your eyes, it offers no flicker, glare, ghosting, or UV rays. The lamp features a cantilever arm design that can be rotated and folded for convenience.
Equipped with a damping spring and adjustable angle support, the lamp provides high elastic tension to enhance stability and adjust the tightness of the support.
The ESD UV Magnifying Lamp adopts a damping principle, allowing the lamp head to rotate 360° for all-around illumination without blind spots, making it easy to use. The clamp design saves space, and the metal support is sturdy.
With a powerful tabletop clamp made of metal, the lamp offers a stable clamp suitable for various space environments, clamping onto tabletops from 0-5cm in thickness.
Designed with a separable stand and base for easy portability, the ESD UV Magnifying Lamp can be connected and tightened for use.
Crafted with German technology, the lamp features glass lenses with high hardness, high transparency, low color dispersion, and clear and bright imaging. For LED night lighting convenience, the lamp has 48 surface-mounted lamp beads arranged in a ring for wider illumination. It offers high brightness without glare, and with a lampshade to prevent eye irritation, meeting the needs of circuit board repair, soldering, and reading illumination.
The ESD UV Magnifying Lamp offers four color temperatures (cool white, natural light, warm yellow light, UV purple light) to meet various lighting needs with soft and non-glaring light. You can adjust the light color with a press switch and adjust the brightness with a rotary switch.
Focusing on quality, the ESD UV Magnifying Lamp provides a meticulous user experience with a stable base that is not easily tipped over. It features a stepless knob for brightness adjustment, allowing you to adjust the brightness from 0 to 100 for personalized care.
There are two variants available: a three-color lamp without a dimming knob on the lamp head, where the power cord has a regulator with a switch button for brightness adjustment, and a single-color lamp with a dimming knob on the lamp head for brightness adjustment.
It comes with a built-in USB data cable, compatible with various power supply methods for plug-and-play convenience and easy portability. The lamp comes with a standard 3C power plug, and various national standard plugs are available for selection.
