ESD SMT Magazine Rack 355x315x580mm

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

ESD SMT Magazine Rack 355x315x580mm

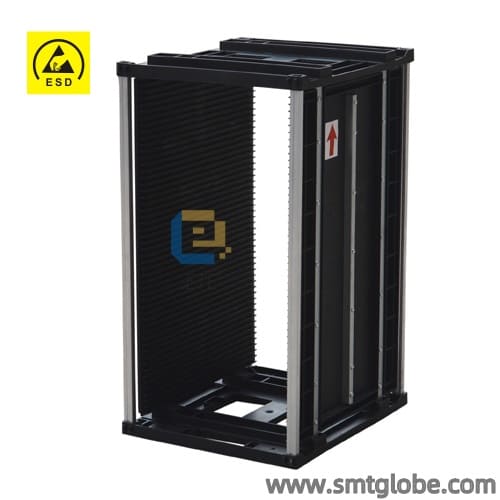

ESD SMT Magazine Rack made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.It has a large storage capacity of 50 PCBs.

Contact: info@smtglobe.com

Share

ESD SMT Magazine Rack made of High-quality raw materials with anti-static agents, providing essential ESD protection for sensitive electronic components.It has a large storage capacity of 50 PCBs.

The ESD SMT Magazine Rack effectively dissipates static charges accumulated on the surface of PCBs, providing protection for PCBs and electronic components. It is designed rationally with excellent quality. It is suitable for transportation, distribution, storage, and processing in SMT factories. Our ESD SMT Magazine Rack is made of high-quality aluminum alloy material, with low density, high strength, comparable to or exceeding high-quality steel. Besides, the PCB magazine rack has good plasticity, can be processed into various profiles, and exhibits excellent conductivity, heat conduction, and corrosion resistance. It is sturdy, durable, and has a long service life. It is easy to install with low maintenance costs. Various custom sizes of ESD SMT Magazine Rack can be made to meet specific user requirements. Its width is adjustable to accommodate various PCB sizes. It has a large capacity for storing multiple PCBs. It has strong load-bearing capacity. Its precise dimensions and slot accuracy, upgraded widened slot spacing, are suitable for thick PCB circuit boards. Screw adjustment design prevents loosening, ensuring PCBs remain secure. The hexagonal screw track adjustment allows for flexible width adjustments when placing boards.

Specification

Product model: E8225P

Overall dimensions: 355*315*580mm

Specifications: length 355* width 80-250mm

Groove size: Groove length 355mm, groove width 7.0mm, groove depth 4.5mm, groove spacing 10mm

Standard size: A: 34mm, B: 34mm

Storage quantity: 50 slots

Adjustment method: manual adjustment, M6 hexagon socket screw fixation

Static electricity indicator: surface resistance 104-108 ohms

Temperature resistance of trough plate: □80℃

Base plate material: plastic panel, anti-static material (metal panel optional)

Side plate structure: whole plastic groove plate

Frame structure: aluminum alloy columns, galvanized carbon steel brackets

Baffle mechanism: spring stopper

Optional accessories: accept non-standard customization

Fine More Magazine Racks to suit your needs in below chart.

Magazine Rack Dimension
LxWxH (mm)
PCB Width(mm)Slot Length(mm)PCB Storage Qty(pcs)Surface Resistance
355x320x26350-25035020Surface Resistance: 10^4-10^6 ohms
System Resistance: <=10^9 ohms
Test environment :25±
RH: 55%±5%
355x315x31590-25035025
355x315x36590-25035030
355x320x56350-25035050
355x320x56550-24035050
465x400x56350-33046050
535x460x57050-39053050
535x530x570120-46053050

Advantages of ESD SMT Magazine Rack:

  1. Excellent anti-static performance: Made of high-quality anti-static materials, it effectively dissipates static charges, ensuring the safety of electronic components.
  2. Rational design: Ergonomically designed for easy operation, enhancing production efficiency.
  3. High load-bearing capacity: Our ESD SMT Magazine Rack has a high load-bearing capacity to meet diverse customer needs.
  4. Durability: Using high-quality materials and advanced production processes ensures product durability and long service life.
  5. ESD Magazine Racks are designed with conductive materials to effectively dissipate static charges and prevent ESD events, ensuring the safety of electronic components.
  6. They provide organized and efficient storage for PCBs, allowing for easy identification and retrieval during manufacturing processes.
  7. The adjustable slots in ESD SMT Magazine Racks accommodate various PCB sizes and thicknesses, offering versatility and flexibility in storage options.
  8. These racks help improve workflow efficiency by reducing the risk of damage to PCBs, minimizing production downtime, and enhancing overall productivity.
  9. ESD Magazine Racks are durable, reusable, and environmentally friendly, making them a cost-effective solution for ESD protection in electronics manufacturing operations.

Application:

  1. ESD SMT Magazine Racks are widely used in electronics manufacturing and assembly processes to store and transport printed circuit boards (PCBs) safely.
  2. They are essential for protecting sensitive electronic components from electrostatic discharge (ESD) damage during handling and storage.
  3. ESD SMT Magazine Racks are commonly used in cleanroom environments, laboratories, and production facilities where ESD control is crucial.
ESD SMT Magazine Rack
ESD SMT Magazine Rack
