ESD PCB Turnover Trolley ET630L

ESD PCB Turnover Trolley – The Ultimate Anti-Static Solution for Efficient and Organized Management of Printed Circuit Boards in Electronic Manufacturing Industries. Our ESD PCB Turnover Trolley offers a clean, convenient, and anti-static environment for the transportation, distribution, and storage of PCBs, ensuring a smooth and efficient workflow in SMT factories.

Contact: info@smtglobe.com

Share

ESD PCB Turnover Trolley – The Ultimate Anti-Static Solution for Efficient and Organized Management of Printed Circuit Boards in Electronic Manufacturing Industries. Our ESD PCB Turnover Trolley offers a clean, convenient, and anti-static environment for the transportation, distribution, and storage of PCBs, ensuring a smooth and efficient workflow in SMT factories.

ESD PCB Turnover Trolley
ESD PCB Storage Trolley

Description

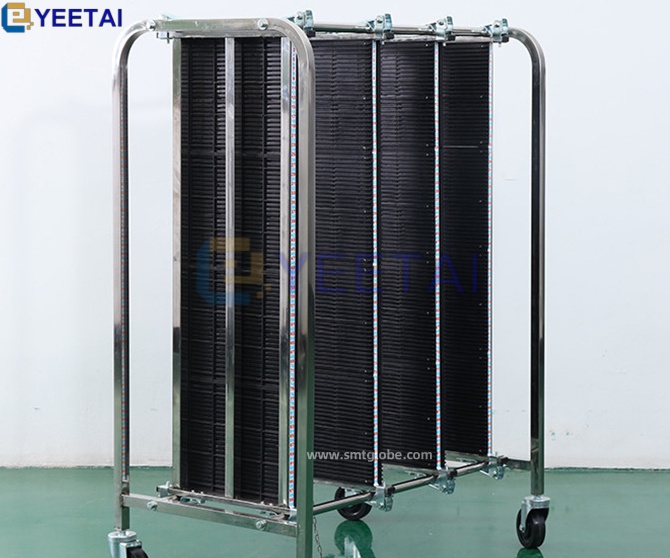

The ESD PCB Turnover Trolley consists of anti-static side panels and stainless steel pillars, equipped with 4 casters. It is widely used in production enterprises such as SMT processing, machinery, automotive, household appliances, light industry, and electronics. The trolley is acid and alkali resistant, oil-resistant, non-toxic, and odorless, suitable for storing PCB boards. It is easy to clean, allows for convenient PCB board turnover, neat stacking, and facilitates management. With its rational design and excellent quality, the ESD PCB Turnover Trolley is suitable for transportation, distribution, storage, and processing in the logistics of SMT factories.

Specification

Model: ET630L

External dimensions: (L) 900 * (W) 750 * (H) 1280MM

Surface resistivity: 10 ^ 4~10 ^ 6 Ω 10 ^ 6-10 ^ 9 Ω

System resistance: ≤ 10 ^ 7 Ω

The length of the slot plate includes: 350MM, 460MM, 530MM, 630MM

Dimensions related to groove plates: groove depth of 4mm, groove width of 5mm, groove spacing of 10mm

PCB storage standard: Each column stores 100 pieces and can be equipped with 2 columns/3 columns/4 columns/5 columns/6 columns. The storage capacity of the entire vehicle can be determined according to customer needs.

Configuration: Two universal wheels, two brake wheels, galvanized fixed wrench, two single-sided side panels, and two double-sided side panels

Material: The car body is made of stainless steel, and the side panels are made of anti-static plastic (permanently anti-static)

Overall Size (L*W*H) mmSlot Length (mm)PCB Storage Qty
900*550*1300350mm200pcs
300pcs
400pcs
500pcs
600pcs
900*600*1280460mm200pcs
300pcs
400pcs
500pcs
600pcs
900*650*1280530mm200pcs
300pcs
400pcs
500pcs
600pcs
900*700*1280630mm200pcs
300pcs
400pcs
500pcs
600pcs
ESD PCB Turnover Trolley

Features

The ESD PCB Storage Trolley is equipped with 2 directional brake wheels and 2 universal wheels. The threaded brake wheels can rotate 360°, suitable for various terrains, and even on slopes, the brake device ensures secure parking without slippage. The universal wheels move freely, allowing easy navigation in every corner of SMT production workshops, being lightweight and durable.

Each anti-static board is equipped with 4 snap fasteners to secure it in place, using metal snap fasteners to easily fix the distance between each column. The slot spacing can be freely adjusted to meet different requirements.

It comes with a digital scale, precise slots where each scale represents a slot, ensuring accurate and smooth board placement for easy management.

The side panels are made of high-quality PP, non-toxic, odorless, and environmentally friendly. Equipped with a metal chain for grounding, effectively releasing static electricity to provide excellent protection for PCBs.

The anti-static side panels are injection-molded from new PP material, offering better performance stability! With a large storage capacity, one rack can store 100-500 PCBs, and the width of each column can be adjusted according to the size of the PCBs, effectively utilizing factory space and reducing costs.
