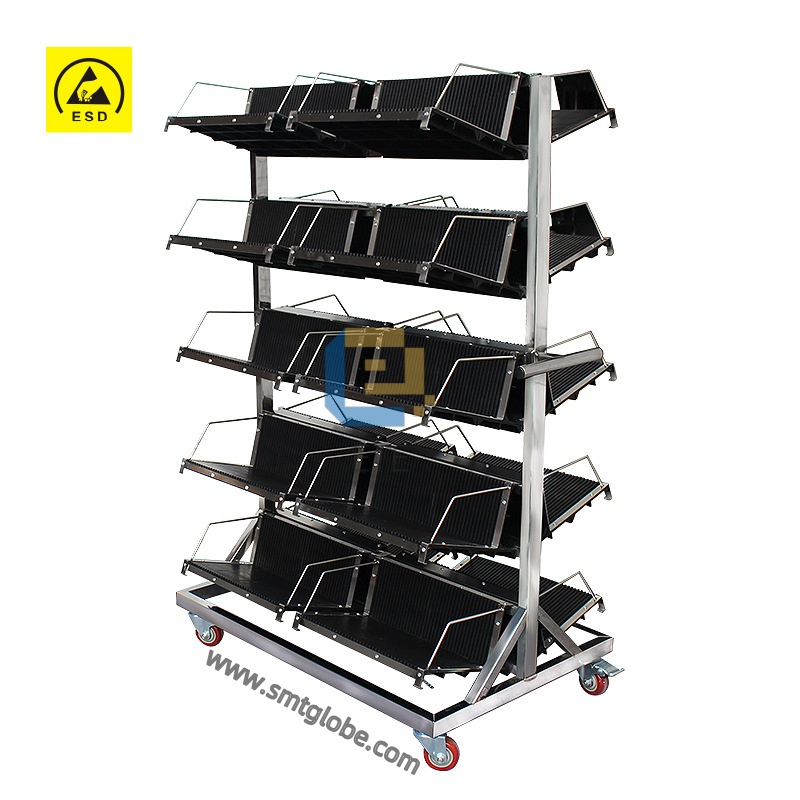

ESD PCB Turnover Rack ER380P – The Ultimate Anti-Static Solution for Efficient and Organized Management of Printed Circuit Boards in Electronic Manufacturing Industries. The ER380P offers a clean, convenient, and anti-static environment for the transportation, distribution, and storage of PCBs, ensuring a smooth and efficient workflow in SMT factories.

The ESD PCB Turnover Rack is for storing and rotating circuit boards, made from anti-static materials to effectively protect circuit boards and electronic components from static electricity damage. This rack provides a safe and secure environment for circuit board storage, ensuring optimal performance and longevity of electronic components. Its anti-static properties safeguard sensitive electronic equipment from the risks associated with electrostatic discharge, making it an essential solution for maintaining the integrity of PCBs and electronic components.

Specification:

Product model: ER380P

External dimensions: 450 * 600 * 1400mm

PCB Rack quantity: 10 hanging baskets

Storage quantity: 38 pieces per basket, a total of 10 hanging 380 pieces

Storage slot shape: slot length 225mm, height 140mm, width 2.8mm, depth 5mm, spacing 10mm

Usage specifications: length 225mm, height less than 230mm (hook spacing 260mm)

Structure: Overall welded structure (optional disassembly and assembly styles)

Framework: 201 stainless steel square tube 50 * 25 * 1.6mm, handrail height from ground 1030mm

Slot plate resistance: surface resistance 10 ^ 5-10 ^ 8 ohms

Overall temperature resistance: can be used in a temperature environment of 60 ℃

Universal wheels: ordinary black four inch universal wheels, two with brakes

Grounding: The metal chain is connected to the ground for anti-static purposes

Material: 201 # stainless steel +PP board

Castor size: 4 inches

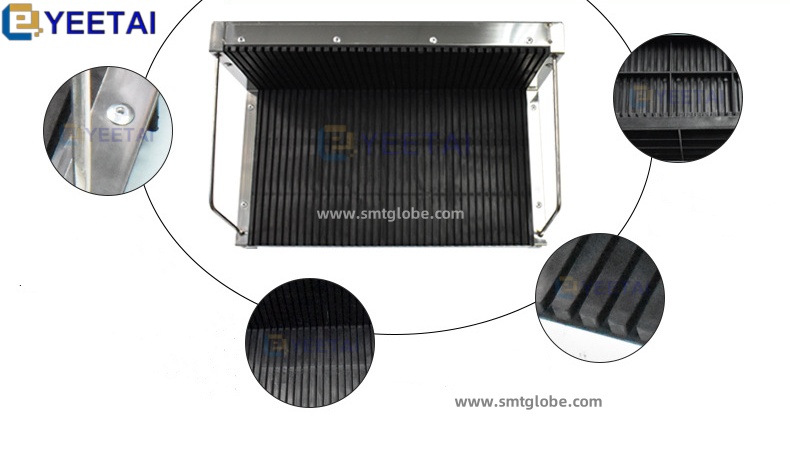

Features

• The ESD PCB Turnover Rack features a detachable design for easy handling and organization of circuit boards.
• With 4 casters for effortless mobility, each PCB Turnover Rack is equipped with two locking casters and two swivel casters, allowing for convenient positioning and smooth movement.
• Its well-thought-out design enables convenient access to PCBs, enhancing operational efficiency.
• Offering a spacious storage capacity and robust load-bearing capability, each PCB Turnover Rack can accommodate up to 38 PCB boards, with an individual rack capable of supporting weights of up to 15kg.

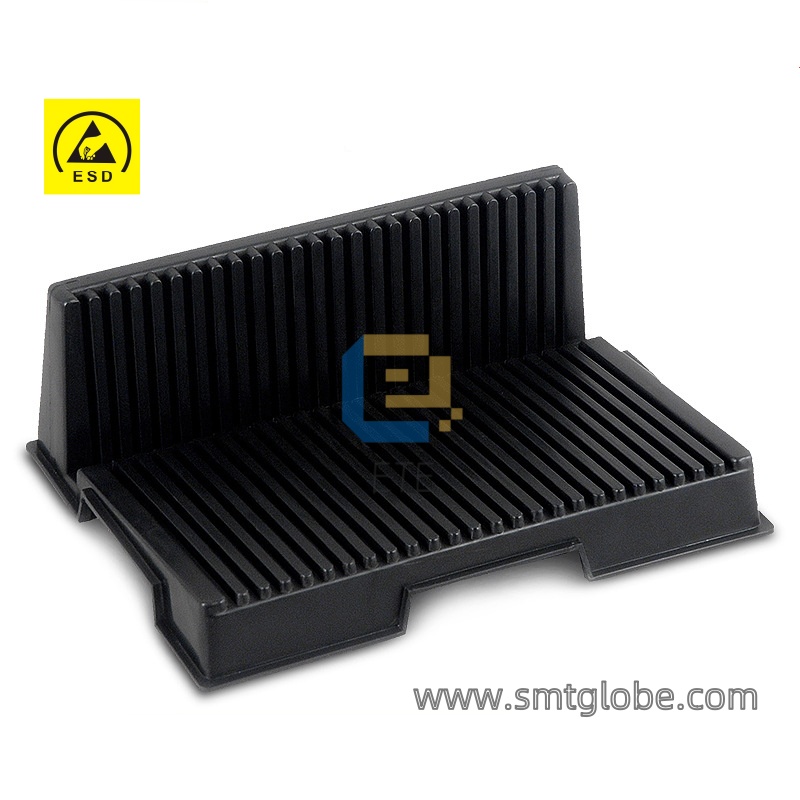

• Crafted from high-quality PP plastic material, the trays ensure durability and reliability in storing circuit boards.
• The integrated anti-static drag chain effectively mitigates static electricity generated by the rack, safeguarding PCBs against electrostatic damage and meeting stringent international anti-static standards.
• Featuring a stable triangular base design, the ESD PCB Turnover Rack enhances overall stability and load-bearing capacity.
• Compliant with RoHS standards, the rack ensures environmental sustainability and regulatory compliance.
