ESD PCB Magazine Rack E2520M

Discover ESD PCB Magazine Rack collection for static-safe storage solutions. Available in various sizes and materials to meet your ESD protection needs.

  • Stable and Safe Design
  • Easy to Use
  • Smooth Operation
  • Precision Workmanship
  • High-Quality Testing

Contact: info@smtglobe.com

Share

Discover the ESD PCB Magazine Rack

Looking for a reliable ESD PCB magazine rack? You’re in the right place! Our rack makes it easier to store and access PCB boards safely and efficiently.


Stable and Safe Design

Strong and Reliable Material

The ESD PCB magazine rack is designed to be stable. We use screws to fix the components, which helps prevent tilting. This stability ensures that your boards stay safe and secure.

Easy to Use

Extracting PCB boards is easy and safe. The rack has plastic slots that make it easy to pull out the panels without hurting your hands. Thus, you can work quickly and efficiently.

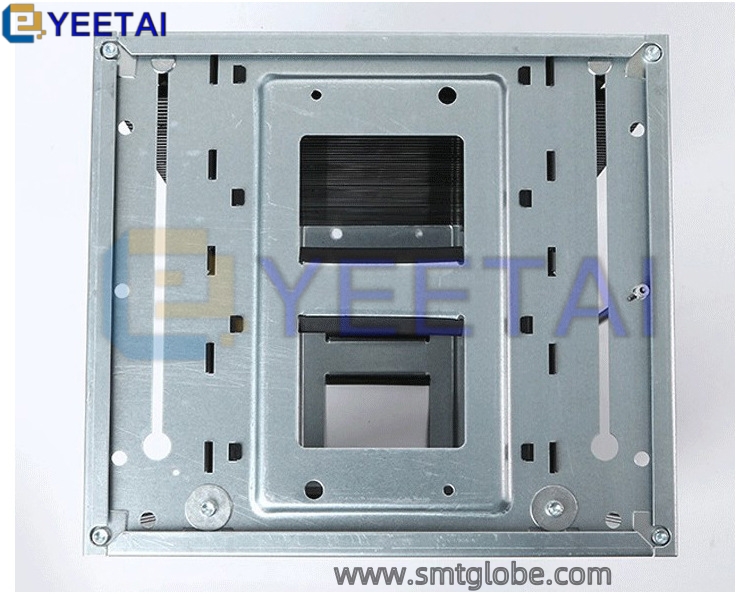

Magazine Rack metal plate

Smooth Operation

smooth operation

Our magazine rack features gears with hexagonal aluminum strips. This design allows for smooth movement without getting stuck. Therefore, you can access your boards without any hassle, extending the life of the rack.

Precision Workmanship

ESD rack

We pay attention to details in the construction of the rack. The upper and lower base plates fit tightly together, which prevents looseness. Moving the side plates is smooth and, ensuring no tilting occurs during use.

Anti-Static Features

The ESD PCB magazine rack has excellent anti-static properties. Its surface resistance ranges from 10^4 to 10^6 ohms. This feature helps protect your PCB boards from damage caused by static electricity, ensuring their longevity.

PCB ESD Magazine Rack

High-Quality Testing

plastic top plate

Every ESD PCB magazine rack undergoes strict quality testing. We design it for repeated use without breakage. Thus, you can trust the quality and durability of our product.


Product Specifications

Here are the specifications for our ESD PCB magazine rack:

  • External Dimensions: 355mm x 320mm x 363mm
  • Adjustable Width: 50mm to 250mm

Types of ESD PCB Magazine Racks

Our magazine racks come in two types:

  1. Plastic base plates with gear track adjustment.
  2. Metal base plates with gear track adjustment.

Physical Properties

The physical properties of our magazine rack include:

  • Surface Resistance: 10^4 to 10^6 ohms.
  • Operating Temperature: Good at 85°C; can tolerate up to 125°C (for aging) and 200°C for high-temperature models.
  • Shelf Structure: Available in solid board, 5-piece small section board, 2-piece small section board, or spliced.

Specification

Product model: E2520M

Overall dimensions: 355*320*263mm

Specifications: length 355* width 50-250mm

Groove size: Groove length 355mm, groove width 5.0mm, groove depth 3.4mm, groove spacing 10mm

Basic size: A: 34mm, B: 34mm

Storage quantity: 20 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation (optional screw adjustment)

Static electricity indicator: Surface resistance 104-108 ohms

Temperature resistance of trough plate: □70℃, □120℃, □230℃, □300℃

Base plate material: Metal panel, galvanized carbon steel

Side panel structure: 2 pieces of plastic (aluminum alloy) panels

Frame structure: aluminum alloy columns, brackets

Baffle mechanism: spring lever

Optional accessories: Accept non-standard customization
