ESD PCB Magazine E3330M

ESD PCB Magazine E3330M with anti-static properties, it is perfect for SMT factories and PCB storage.

  • Surface resistance of 10^4~10^9Ω for reliable ESD protection.
  • Easy Gear Adjustment. Quick adjustment.
  • Smooth PCB Placement.
  • Customizable Sizes.
  • High-Temperature Resistance.
  • Strict Quality Control.

Contact: info@smtglobe.com

Share

Compare Our ESD PCB Magazine Rack to Your Current Models

Anti-Static Safety Compliance
Our ESD PCB magazine racks meet all anti-static safety standards. Thus, they are safe for use in sensitive environments where static can cause damage.

Easy Gear Adjustment
Our magazine racks feature a convenient gear adjustment system. This design makes it easy and quick to adjust the size of the rack to fit different PCB sizes.
Our gear adjustment system allows for easy placement of PCBs. It can accommodate PCBs up to the maximum size of the rack, making your workflow more efficient.

Customizable Sizes
We offer non-standard size customization. This feature allows you to choose the size that best fits your specific needs.

Smooth PCB Placement
We ensure that our racks provide smooth board placement. This feature allows you to load PCBs onto the racks with ease.

High-Temperature Resistance
Our racks can withstand high temperatures. Therefore, they are suitable for various production processes that require heat resistance.

Strict Quality Control

Comprehensive Testing for Quality
We conduct multiple tests from raw materials to assembly. Our strict quality control ensures that every step meets high standards. Thus, we guarantee the quality and reliability of our products.

Exquisite Craftsmanship

Attention to Detail in Manufacturing
Each part of our racks is carefully polished to remove any burrs. We also use automated machines for precise production and sizing. This attention to detail ensures quality in every product.

Curved Design for Smooth Loading
The racks feature a curved, wide-mouth design. This design allows for smoother board placement and makes it easy to load PCBs onto the racks.

Selected High-Quality Materials

Using Premium PP Granules
We use premium PP granules in our racks. This selection ensures stable anti-static properties and high durability.

Semi-Finished Product Testing

Stringent Anti-Static Checks
We perform anti-static testing on semi-finished products. This process helps us maintain strict quality control over our racks.

Customizable Designs for Your Needs

Flexible Production Options
We can flexibly produce and customize various sizes and models. This flexibility allows us to meet your unique requirements.

Complete Board Testing

Thorough Anti-Static Checks
We conduct multiple anti-static tests on the entire board. These checks ensure compliance with safety standards, giving you peace of mind.


Specification

Product model: E3330M

Overall dimensions: 460*400*363mm

Specifications: length 460* width 50-330mm

Groove size: Groove length 460mm, groove width 5.0mm, groove depth 3.4mm, groove spacing 10mm

Basic size: A: 34mm, B: 34mm

Storage quantity: 30 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation (optional screw adjustment)

Static electricity indicator: Surface resistance 104-108 ohms

Temperature resistance of trough plate: □70℃, □120℃, □230℃

Base plate material: Metal panel, galvanized carbon steel

Side panel structure: 3 pieces of plastic panels

Frame structure: aluminum alloy columns, brackets

Baffle mechanism: spring lever

Optional accessories: Accept non-standard customization


Simple Installation Steps

Easy and Quick Setup
Our magazine racks are designed for simple installation. Follow these easy steps to set it up:

  1. Take out all the parts and check if they are complete.
  2. Firmly press down on the gear strip.
  3. Secure the four pillars with screws.
  4. Align the side panels with the holes and tighten the screws.
  5. Align the bottom of the movable side panel with the locking circular hole.
  6. Attach the bottom panel, ensuring the circular head of the lock is pushed up before moving.
  7. Install the stopper at the spring area to finish the assembly.

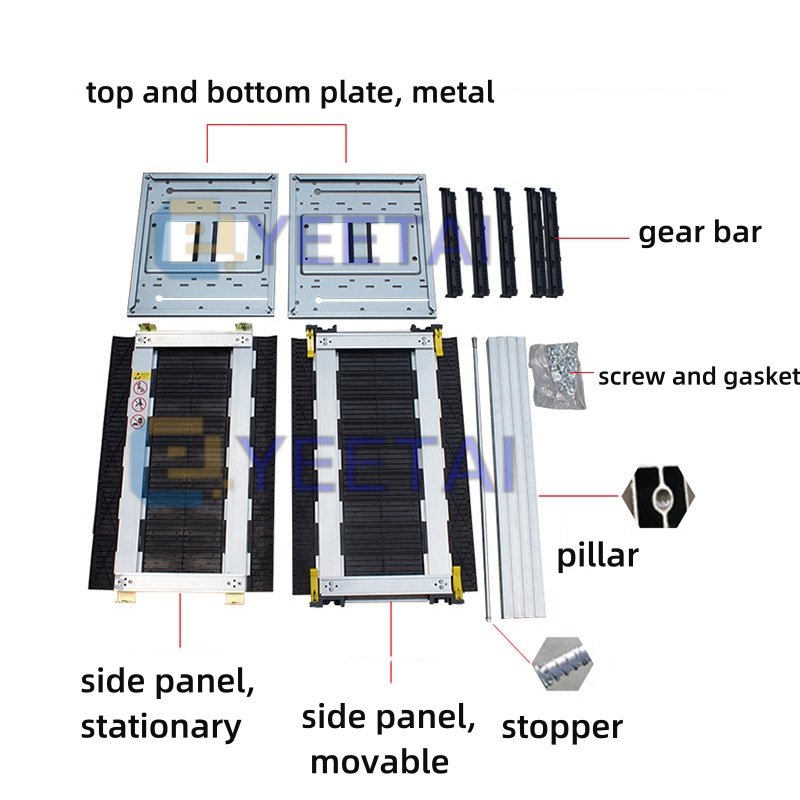

magazine spare parts kits
