ESD Magazine Rack: The Solution for SMT and PCB Storage

Are you disturbed by static discharge in a SMT factory? YEETAI brings you with high quality products.The ESD Magazine Rack meets global production standards. And it is widely used in SMT (Surface Mount Technology) processing plants. PCB (Printed Circuit Board) factories, and computer motherboard manufacturers also can use it.

In this article, we are introducing our ESD magazine rack E2550M for your reference.

---

ESD Magazine Rack Key Features

Composition

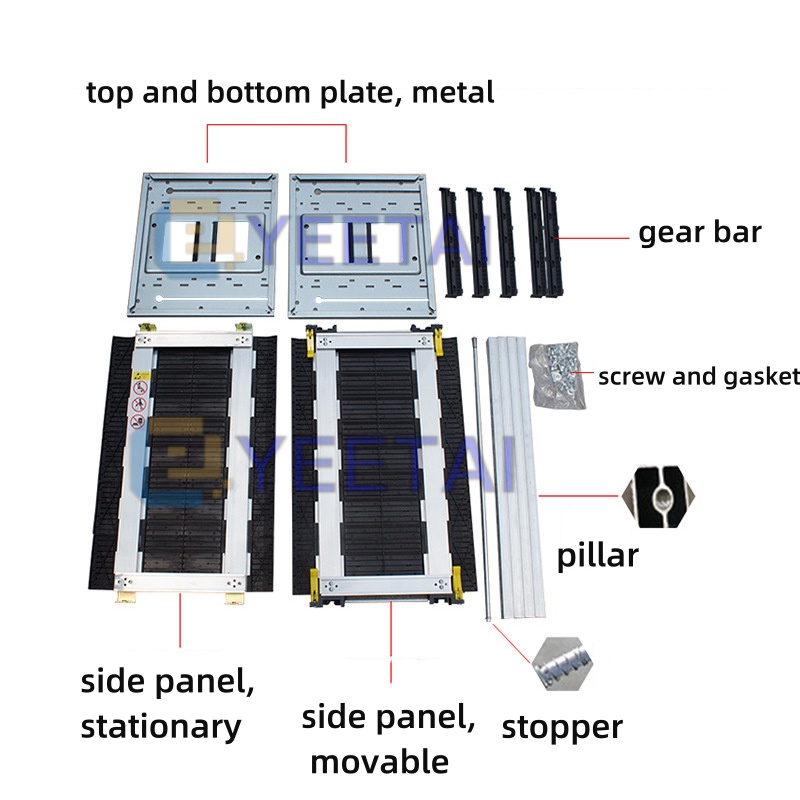

• Antistatic Side Panels: Constructed from high-quality plastic. Providing superior anti-static properties.
• Sturdy Columns: 4 robust columns, secured with screws on both sides. Enhance stability and facilitate a simple installation process.
• Metal Top and Bottom Plates: The metal bottom plate increases friction with the ground.

• Plastic Locking Clips: The clips firmly secure the movable side panels. And this reduces the risk of detachment. They are adjustable based on product size. Protects users from injury.
• Durable Gear Strips: With high-frequency quenched gear strips. It provides outstanding wear resistance and high load-bearing capacity. Reliable performance.

---

Specification

Product model: E2550M

Overall dimensions: 355*320*563mm

Specifications: length 355* width 50-250mm

Groove size: Groove length 355mm, groove width 5.0mm, groove depth 3.4mm, groove spacing 10mm

Basic size: A: 34mm, B: 34mm

Storage quantity: 50 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation

Static electricity indicator: Surface resistance 104-108 ohms

Temperature resistance of trough plate: □70℃, □120℃, □230℃

Base plate material: Metal panel, galvanized carbon steel (stainless steel base plate optional)

Side panel structure: 5 pieces of plastic panels

Frame structure: aluminum alloy columns, brackets

Baffle mechanism: spring lever

Optional accessories: Accept non-standard customization

---

ESD Magazine Rack Advantages

1. Excellent Anti-Static Performance: Made from anti-static materials of top quality. Safeguarding electronic components.
2. Rational Design: Ergonomically designed for ease of use, our racks enhance operational efficiency.
3. High Load-Bearing Capacity: Designed to meet various customer needs with high load-bearing capabilities.
4. Durability: Employing advanced production techniques, our racks are built to last.
5. Spare Parts Support: We offer extensive spare parts support. With a large stock of replacement parts readily available for maintenance and repair. Ensuring the ongoing reliability of your equipment.

---

Innovative Solutions

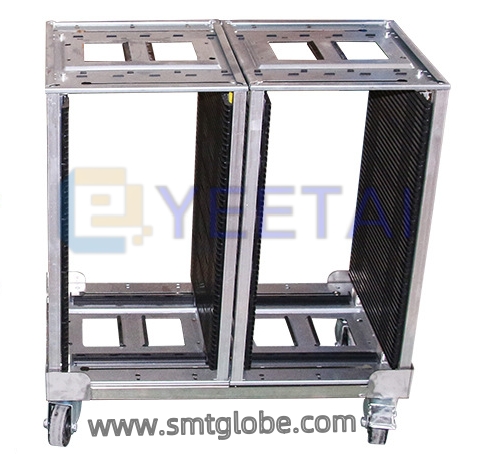

Are you tired of traditional magazine racks? We are excited to introduce our new style of ESD Magazine Rack, featuring a mounted rail with wheels that provides effortless mobility.

Product Name	Model	Magazine Size LxWxH	PCB Size(L*W)	PCB Storage Qty	Width Adjustment
ESD Magazine Rack	E3353P	355*320*563mm	355*(50-355)MM	50pcs	Screw/Buckle adjustment
	E4450P	460*400*563mm	460*(50-460)MM	50pcs	Screw/Buckle adjustment
	E5550P	535*460*570mm	535*(50-390)MM	50pcs	Buckle adjustment
	E5560P	535*530*570mm	530*(120-460)MM	50pcs	Buckle adjustment
Aluminum Magazine Rack	E3325A	335*320*263mm	350*(50-250)MM	50pcs	Screw/Buckle adjustment
	E4450A	460*400*563mm	460*(50-330)MM	50pcs	Screw/Buckle adjustment
	E5450A	535*460*570mm	535*(50-390)MM	50pcs	Screw/Buckle adjustment
	E5350A	535*530*570mm	535*(50-390)MM	50pcs	Screw/Buckle adjustment

esd-pcb-storage-rack

esd-smt-pcb-rack

pcb-magazine-rack-esd

Quality Packaging

To ensure the protection of your ESD Magazine Rack during transport, we use individual package. Mainly 4 steps as below.

Conclusion

Well, that’s the presentation about our ESD magazine rack. In order to help our customer build a ESD safe SMT factory, we dedicate ourselves to this product. Our expertise enables us to serve many electronics manufacturers. If you are looking for a reliable vendor, we are the right one. If you want to enhance your ESD management, you can visit our website or contact us directly.
