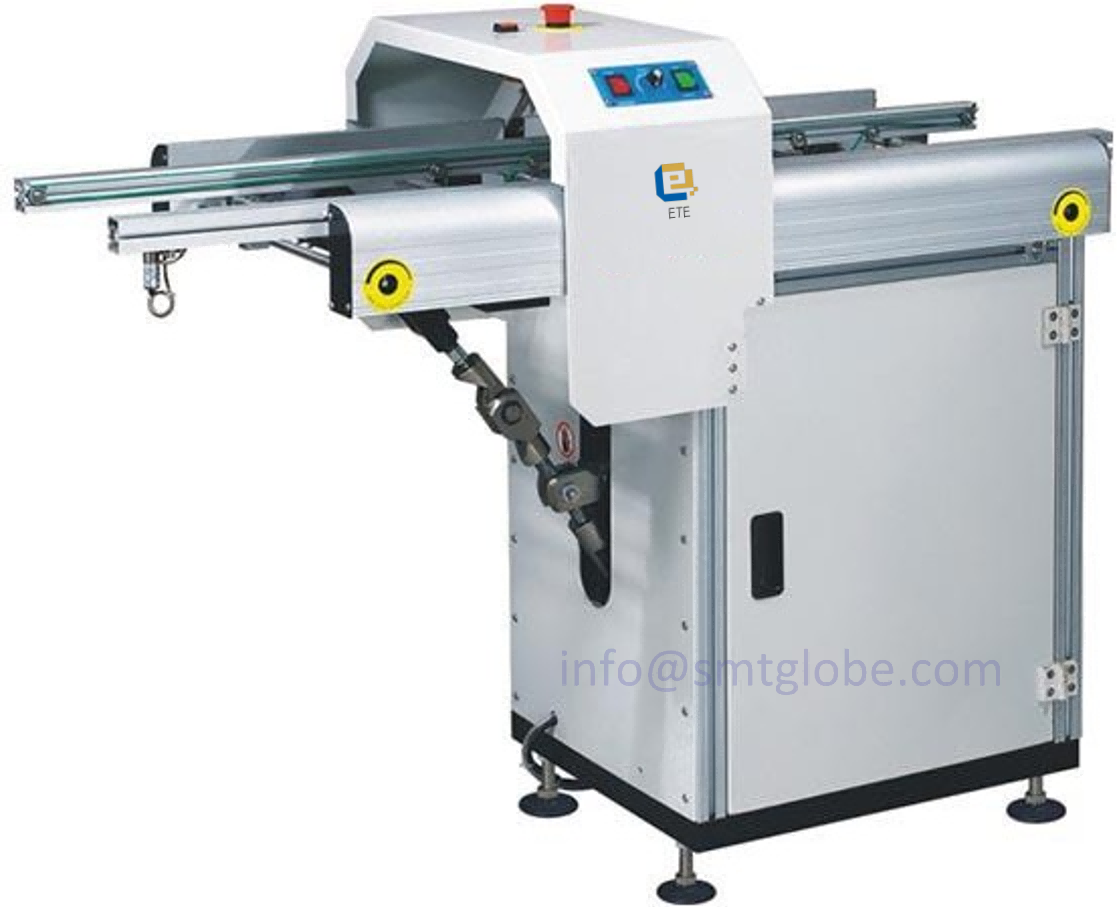

Dropping Down Conveyor:Designed to create a passage in a production line, the Conveyor saves space by eliminating the need for an additional passage. Its safety features ensure secure operation while enhancing the accessibility of your production line.

The Dropping Down Conveyor comes with a user-friendly push-button control system for efficient lowering and lifting of the gate conveyor, ensuring smooth operation. A locking cylinder is integrated to prevent accidental opening during PCB transfer, enhancing safety and security in the workflow.

The ergonomic design features air pressure support for effortless opening and closing, promoting operator comfort and productivity. The gate can be automatically lowered by simply pressing a button, streamlining the handling process and saving time. The conveyor offers parallel and smooth width adjustment capabilities through a lead screw mechanism, allowing for precise customization to meet specific production requirements. The Dropping Down Conveyor is SMEMA compatible, enabling seamless integration into existing production lines for enhanced efficiency.

Features:

Lowering and lifting of gate conveyor.(Push bottons control).  Locking cylinder to avoid opening during PCB transfer.

Ergonomic air pressure supported opening and closing.  Automatically gate lifting down by push button.

Parallel and smooth width adjustment.(lead screw)  SMEMA compatible.

Technical specifications

Model	Dimension (L*W*H.MM)	PCB size(MM)	Weight(KG)	PCB Thickness
EDW-400	1300*570*1050	50*50-445*400	180KG	0.6~4 mm

Transport height:900mm ±20mm or specify

Transfer direction:L to R or specify R to L

Belt type: ESD flat belt (round belt)

Speed:0.5-20m/min adjustable

Cycle time: 15 seconds approx.

Air Pressure & Air Consumption: 4-6 bar, 48ltr/Min

Power supply:AC 110 Volts Or 220 Volts; Single Phase

Power consumption: 100VA max. or specify

Load bearing:1.5kg/PCB

Telescopic Length (Passageway): 600mm or specify
