Aluminum SMT Magazine Rack E46AL

ETE, your trusted SMT partner. All kinds of AI/SMT spare parts and equipment available.

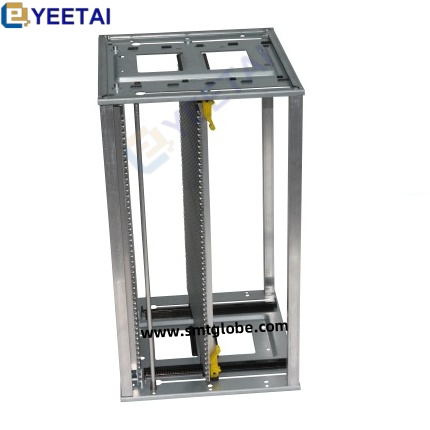

Aluminum SMT Magazine Rack E46AL

Aluminum SMT Magazine Rack,also known as “SMT magazine rack”, is designed for seamless PCB storage and retrieval, providing efficient workflow in SMT environments. Smooth moving.

Stable and fast adjustment.

ESD protection and high temperature resistant.

Contact: info@smtglobe.com

Share

Aluminum SMT Magazine Rack,also known as “SMT magazine rack”. It is designed for seamless PCB storage and retrieval, providing efficient workflow in SMT environments. Smooth moving

The Aluminum SMT Magazine Rack is made of aluminum alloy and can support usage in high-temperature ovens. The SMT PCB Magazine Rack is from aluminum alloy and can support usage in high-temperature ovens. It has a wide range usage in SMT processing plants, PCB factories, and computer motherboard factories. The rack is resistant to acid, alkali, and oil, non-toxic and odorless, suitable for storing PCB boards. The magazine rack facilitates convenient cleaning, easy circulation of circuit boards, neat stacking, and efficient management.

With its rational design and superior quality, the Aluminum SMT Magazine Rack is suitable for transportation, distribution, storage, and processing in factories, preventing static electricity on PCBs. It can be used in conjunction with various logistics containers and workstations in warehouses, production sites, and other scenarios, helping enterprises complete the circulation, storage, and integrated management of PCB boards. It is an excellent choice for modern production management in manufacturing and outsourcing enterprises.


Features of Aluminum SMT Magazine Rack

  1. Excellent anti-static performance: Made of high-quality Aluminum alloy, it effectively dissipates static charges, ensuring the safety of electronic components.
  2. Rational design: Ergonomically designed for easy operation, enhancing production efficiency.
  3. High load-bearing capacity: Our Magazine Rack has a high load-bearing capacity to meet diverse customer needs.
  4. Durability: Using high-quality materials and advanced production processes ensures product durability and long service life
  5. Cleanliness level: Class 100
  6. The Aluminum SMT Magazine Rack is made of aluminum alloy, suitable for use in high-temperature ovens.
  7. It is safe and efficient, with multiple sizes available for selection.
  8. Choose between buckle adjustment or screw adjustment, durable and convenient.
  9. The metal bottom plate enhances friction with the ground, providing increased stability and durability.
  10. Precise dimensions and excellent workmanship.
  11. The curved wide mouth design allows for smooth board placement.
  12. Anti-static detection ensures safety compliance, meeting international standards such as IEC 61340-5-1, ANSI/ESD-S20.20.

Specification

Product model: E39AL

External dimensions: 535 * 460 * 573mm

Usage specifications: length 535 * width 50-390mm

Slot size: slot length 535mm, slot width 7.5mm, slot depth 3.4mm, slot spacing 10mm

Reference dimensions: A: 34mm, B: 34mm

Storage quantity: 50 slots

Adjustment method: gear synchronous adjustment, plate buckle fixation (optional □ screw adjustment)

Static electricity index: surface resistance 10^4-10^8 ohms

Temperature resistance of groove plate: □ 300 ℃

Bottom plate material: metal panel, galvanized carbon steel material

Side panel structure: 5 aluminum alloy panels

Framework structure: aluminum alloy columns, brackets

Baffle mechanism: spring lever

Optional accessories: accept non-standard customization

Product NameModelMagazine Size
LxWxH
PCB Size(L*W)PCB Storage QtyWidth Adjustment
ESD Magazine RackE3353P355*320*563mm355*(50-355)MM50pcsScrew/Buckle adjustment
E4450P460*400*563mm460*(50-460)MM50pcsScrew/Buckle adjustment
E5550P535*460*570mm535*(50-390)MM50pcsBuckle adjustment
E5560P535*530*570mm530*(120-460)MM50pcsBuckle adjustment
Aluminum Magazine RackE3325A335*320*263mm350*(50-250)MM50pcsScrew/Buckle adjustment
E4450A460*400*563mm460*(50-330)MM50pcsScrew/Buckle adjustment
E5450A535*460*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
E5350A535*530*570mm535*(50-390)MM50pcsScrew/Buckle adjustment
ESD-Magazine-Rack

The Aluminum SMT Magazine Rack consists of top and bottom surfaces made of high-quality steel stamped, with premium anti-static plastic injection-molded tooth strips for precise dimensions and smooth adjustment. The fixed plate is secured to the top and bottom surfaces with screws, assembled from 5 aluminum plates and back beams. The plate and back beams are fixed with countersunk rivets, ensuring stability and aesthetics, with smooth edges for easy insertion.

The activity plate of the Aluminum SMT Magazine Rack is fixed in the groove by a pressure buckle, allowing adjustment of the distance between the two plates to accommodate different sizes of PCB storage. When adjusting the plate width, the teeth on the top and bottom surfaces act on the activity plate, driving the gears on the activity plate to synchronize and drive four buckles to slide in the groove, keeping the activity plate parallel to the fixed plate and preventing jamming effectively. Once adjusted, tighten the buckles to secure the activity plate.

Additionally, the pillars of the Aluminum SMT Magazine Rack are made using aluminum extrusion molding process, with a wall thickness of 1.5mm and a unique cross-section design, ensuring structural strength while effectively reducing product weight.


Welcome to visit our factory.

The SMT Magazine Rack produced by our company strictly complies with international standards such as IEC 61340-5-1, ANSI/ESD-S20.20, and the international military standard GJB3007-2009. We have passed the strict implementation of the ISO 9001:2015 quality management system, ISO 14001:2015 environmental management system, and the product materials have been inspected by SGS to comply with the requirements of the ROHS 2.0 EU environmental directive.


ETE has an independent laboratory and testing center equipped with a full set of materials and antistatic performance testing equipment. Before each shipment, we conduct rigorous antistatic testing on our products and adhere to strict quality inspection standards to ensure that every ESD Magazine Rack meets our quality system before delivering the goods to customers.
